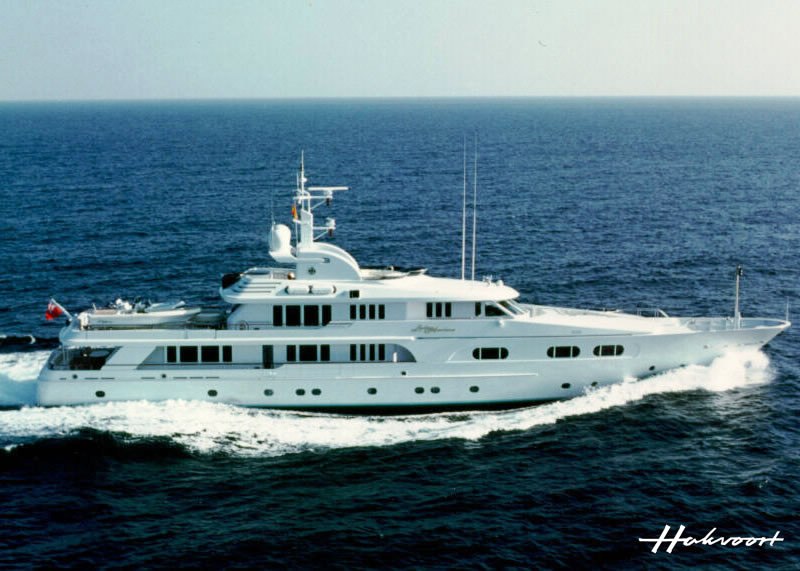

A Summary of Motor Yacht LADY M
The motor yacht LADY M is a 50 m 164 (foot) generous steel vessel which was completely constructed by Hakvoort Shipyard and designed in the office of Diana Yacht Design and Donald Starkey Designs. Accommodating 10 guests and 14 crew members, motor yacht LADY M was previously called Lady Marina. The firm of naval architecture who actualised her drawings with respect to the yacht is Diana Yacht Design and Donald Starkey Designs. In addition, the interior design is the work of Donald Starkey Designs/Struik & Hamerslag.
New Build & Yacht Design relating to Luxury Yacht LADY M
Diana Yacht Design was the naval architecture company involved in the professional superyacht design work for LADY M. Her interior design was completed by Donald Starkey Designs/Struik & Hamerslag. Diana Yacht Design and Donald Starkey Designs is also associated with the yacht general design work for this yacht. Created by Hakvoort Shipyard the vessel was built in the recognised yachting country the Netherlands. She was successfully launched in Monnickendam in 1994 before being delivered to the owner. The core hull was crafted from steel. The motor yacht main superstructure is fabricated for the most part with aluminium. With a width of 9.39 metres or 30.8 feet LADY M has fairly large internal space. A fairly deep draught of 3.11m (10.2ft) limits the number of certain harbours she can enter, contingent on their specific depth at low tide. She had refit improvement and modification completed by 2008.
The Performance - Engine Room On M/Y LADY M:
Powered by twin CATERPILLAR diesel engines, LADY M can attain a top speed of 15.5 knots. LADY M is propelled by twin screw propellers. She also has an economical range of 4500 nautical miles when underway at her cruising speed of 14 knots. Her total HP is 2580 HP and her total Kilowatts are 1898. Regarding bow thrusters she uses Holland Roer. For stabalisers she utilises Quantum Zero Speed At Anchor.
The Accommodation Offered On Superyacht LADY M:
The generous luxury yacht motor yacht LADY M is able to accommodate as many as 10 guests and has 14 crew members.
A List of the Specifications of the LADY M:
| Superyacht Name: | Motor Yacht LADY M |
|---|---|
| Ex: | Lady Marina |
| Built By: | Hakvoort Shipyard |
| Built in: | Monnickendam, Dutch |
| Launched in: | 1994 |
| Refitted in: | 2008 |
| Length Overall: | 49.99 metres / 164 feet. |
| Waterline Length: | 43.2 (141.7 ft) |
| Naval Architecture: | Diana Yacht Design and Donald Starkey Designs, Diana Yacht Design |
| Designers Involved in Yacht Design: | Donald Starkey Designs |
| Interior Designers: | Donald Starkey Designs/Struik & Hamerslag |
| Gross Tonnes: | 658 |
| Nett Tonnes: | 197 |
| Displacement: | 580 |
| Hull / Superstructure Construction Material: | steel / aluminium |
| Owner of LADY M: | Unknown |
| LADY M available for luxury yacht charters: | - |
| Is the yacht for sale: | - |
| Helicopter Landing Pad: | No |
| Material Used For Deck: | teak |
| The Country the Yacht is Flagged in: | Belize |
| Official registry port is: | Belize City |
| Home port: | Belize City, USA |
| Class society used: | LR (Lloyds Register) |
| Max yacht charter guests: | 10 |
| Number of Crew Members: | 14 |
| Main Engine(s) is two 1290 HP / 949 Kilowatts Caterpillar. Model: | 3512 DITA diesel. |
| Total engine power output 2580 HP /1898 KW. | |
| Approximate Cruise Speed is 14 nautical miles per hour. | |
| Her top Speed is around 15.5 nautical miles per hour. | |
| Range: | 4500 at a speed of 14 knots. |
| Fuel tanks: | 82000 L. |
| Water: | 21000.00. |
| Generators: | Caterpillar C9 3 times 160 kilowatts. |
| Cruised the areas of: | Páros. Greece. Kykládes. |
| Stabaliser Stabality devices: | Quantum Zero Speed At Anchor. |
| Thrusters: | Holland Roer. |
| A/C: | Heinen & Hopman. |
| Beam: | 9.39m/30.8ft. |
| Waterline Length (LWL): | 43.2m/141.7ft. |
| Draught Maximum: | 3.11m/10.2ft. |
Miscellaneous Yacht Details
On Sept 2009 LADY M went to Qormi, in Malta. This motor yacht also cruised the area encompassing Kykládes during the month of October 2009. The yacht was built with Heinen & Hopman air conditioning system. This motor yacht has a teak deck.
