MIRAGE Heesen Yachts

If you have any questions about the MIRAGE information page below please contact us.

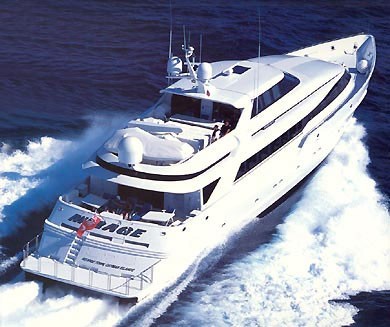

A General Description of Motor Yacht MIRAGE

This motor yacht MIRAGE is a 40 metre 132 (foot) generous aluminium ship which was made by Heesen Yachts and devised from the design board of Frank Mulder and Gerhard Gilgenast. Accommodating 10 passengers and 6 qualified crew, motor yacht MIRAGE is ex 8240; El Corsario. The naval architecture office which delivered her design work in respect of this ship is Frank Mulder and Gerhard Gilgenast. The interior styling is the work of Art-Line Interiors.

Construction & Designing relating to Luxury Yacht MIRAGE

Frank Mulder was the naval architect firm involved in the formal vessel plans for MIRAGE. Her interior design was completed by Art-Line Interiors. Frank Mulder and Gerhard Gilgenast is also associated with the yacht wider design collaboration for this boat. the Netherlands is the country that Heesen Yachts completed their new build motor yacht in. After her formal launch in 1991 in Oss the boat was afterwards handed over to the happy owner having completed final finishing. A spacious area is brought about with a maximum beam (width) of 8.17 m / 26.8 ft. With a 1.68m (5.5ft) draught (maximum depth) she is reasonably shallow. The material aluminium was used in the building of the hull of the motor yacht. Her superstructure over the hull is built from aluminium. In 1999 further refitting and modernisation was in addition performed.

Propulsion Type And Engine Room For M/Y MIRAGE:

Fitted with three MTU diesel engines, MIRAGE is able to reach a high speed of 48 knots. Her propulsion units are tripple water jets (kamewa). She also has an efficient range of 2800 miles whilst underway at her cruising speed of 38 knots. Her total HP is 10440 HP and her total Kilowatts are 7682. With respect to bow thrusters she uses Dahne. With respect to the ship’s stabalisers she was built with Vosper.

Accommodation Capacity Provided by Superyacht MIRAGE:

The ample luxury yacht motor yacht MIRAGE is able to sleep a total of 10 guests and 6 qualified crew.

A List of the Specifications of the MIRAGE:

Superyacht Name:	Motor Yacht MIRAGE
Ex:	8240; El Corsario
Built By:	Heesen Yachts
Built in:	Oss, Dutch
Launched in:	1991
Refitted in:	1999
Length Overall:	40.23 metres / 132 feet.
Waterline Length:	32.95 (108.1 ft)
Naval Architecture:	Frank Mulder and Gerhard Gilgenast, Frank Mulder
Designers Involved in Yacht Design:	Gerhard Gilgenast
Interior Designers:	Art-Line Interiors
Gross Tonnes:	294
Nett Tonnes:	88
Displacement:	140
Hull / Superstructure Construction Material:	aluminium / aluminium
Owner of MIRAGE:	Unknown
MIRAGE available for luxury yacht charters:	-
Is the yacht for sale:	-
Helicopter Landing Pad:	No
Material Used For Deck:	aluminium
The Country the Yacht is Flagged in:	Cayman Islands
Official registry port is:	George Town
Home port:	Nassau, Bahamas
Class society used:	ABS (American Bureau of Shipping)/NK (Nippon Kaiji Kyokai (ClassNK))K
Max yacht charter guests:	10
Number of Crew Members:	6
Her Engine(s) is three 3480 Horse Power or 2561 kW MTU. Model:	16V 396 TE94 diesel.
Total engine power output 10440 HP /7682 KW.
Cruising at a speed of 38 nautical miles per hour.
Top Speed:	48 nautical miles per hour.
Range:	2800 at a speed of 10 knots.
Fuel tanks:	39000 L.
Potable water capacity:	6000.00.
Generators:	Northern Lights 2 times 74 kilowatts.
Stabaliser Stabality devices:	Vosper.
Bow Thrusters:	Dahne.
Air Conditioning:	Heinen & Hopman.
Yacht Beam:	8.17m/26.8ft.
Waterline Length (LWL):	32.95m/108.1ft.
Draught at deepest:	1.68m/5.5ft.

Further Information On The Yacht

Heinen & Hopman is the air con fitted in the interior. Her deck material is predominantly a aluminium deck.
