The 42m superyacht Ocean Supremacy is a Super Fast, Super Green motor yacht designed by Sauter Carbon Offset Design (SCOD). The Ocean Supremacy yacht boasts an incredible maximum speed of 53 knots making her Pirate proof, and her 50% reduction in fuel consumption and 14 knot Zero Carbon Cruising Speed make her the most advanced Eco Luxury Superyacht that money can buy.
The motor yacht Ocean Supremacy utilizes a 9 MW Solar Hybrid Propulsion System powered by a combination of Sustainable Sources of energy that integrate and exploit the availability of; Solar, Wind, Wave and Bio Mass Diesel power.

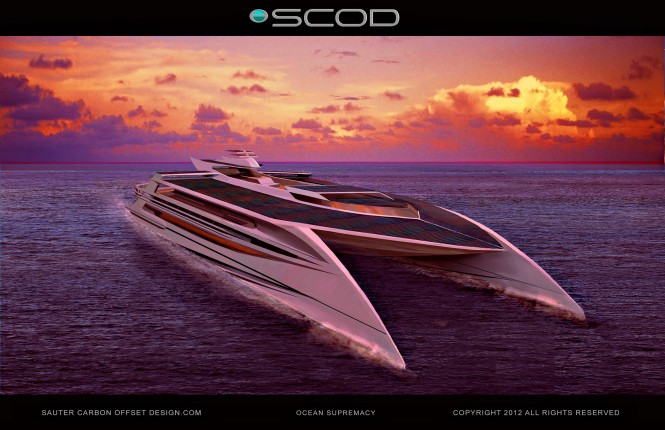

42m Superyacht Ocean Supremacy at Sea
Solar;
70KW Marine solar cell array charging a 2MW Lloyds approved Lithium UPS for Zero Carbon cruising at up to 14 knots or as a power booster.
Wind;
Auxiliary 200 KW inflatable traction Kite for Zero Carbon cruising, charging batteries and increasing cruising speeds.
Wave;
50KW Motion Damping Regeneration system for charging batteries and increasing cruising speeds.
Bio Mass Power Sources
2X V16 (bio diesel compatible) Series 2000 Tier 4i MTU Genset generating up to1 MW each.
The most economical Hybrid Cruising Speed of 18 knots is achieved by employing only one Genset in conjunction with Solar, Wave and Wind power
4XV16 (bio diesel compatible) Series 2000 Tier 4i MTU / ZF Hybrid Motors generating 1.5MWs of power each for speeds up to 45 knots.
Lithium UPS Reserve Power
2X1.5 MW Siemens electric motors powering 2 retractable Anerson surface drives for speeds up to 53 knots.
Propulsion Drives
2 Rolls Royce 1.5MW Waterjets in each of Ocean Supremacy’s wave piercing hi-speed displacement hulls. Each can be driven by the parallel MTU/ZF hybrid motors utilizing the 2MW Lithium UPS and or the 1MW Tier 4i MTU Gensets
The 2 Retractable Anerson Surface drives located in the demi-hull can be driven by the Siemens motors powered by the 2xV16 Tier 4i MTU Gensets and or the 2MW UPS.
Hybrid Green Power Advantages
The 42 meter power catamaran Ocean Supremacy is more than twice as fast as most Superyachts yet consumes half as much fuel and produces less than half as much GHG emissions by employing a diversity of renewable power sources
The ability to shut down 1 to 6 of her Tier 4i diesels allows her to achieve the very highest level of efficiency with the lowest rate of consumption at virtually all speeds.
Optimizing Hydrodynamic Efficiency
The Hydrodynamic efficiency of hi-speed wave piercing SuperCats is clearly indicated by their incredibly small wave making signatures.
This visible difference points to why the power requirements of M/Y Ocean Supremacy are 30% less compared to conventional hi-performance Superyachts. Ocean Supremacy enhances this inherent advantage by providing efficient Power on demand via variable sources matched to a variable as well as a drag free retractable drive system.
Optimizing Aerodynamic Efficiency
To minimize the effects of drag, the superyacht Ocean Supremacy’s aerodynamic form is optimized in a Wind Tunnel to insure that a lamina flow is maintained from bow to stern where foils are employed to eliminate the extreme turbulence and drag associated with the vast majority of conventional Superyachts.
A true State of the Art Superyacht
Richard Sauter commented. “Ocean Supremacy is the first Cutting Edge, no compromise Eco Luxury Superyacht of her kind. Operating with renewable sources of energy, she combines the advantages of reserve power for emergencies, more comfort in rough seas, more space for entertaining and the privilege of Total Independence which comes from having an Unlimited Zero Carbon Cruising Range”.
Carbon Neutral
As a Certified Carbon Offset Project, the Ocean Supremacy motor yacht can save on average 4,000 tons of CO2 per year. Plugged in to shore power she is capable of feeding 200+Mwh’s of electricity to the grid, enough energy to offset an annual Carbon Neutral Cruising Range of 3,600nm at 18knts.
Luxury Onboard Environment
The main and upper Sun Deck with Pool Area gives incredible flexibility for a number of uses such as Sunbathing, Dancing, Parties, Entertaining and Events. The upper deck has an outside cockpit that is protected from the sun and rain by a Photovoltaic Canopy and also features an open-air outdoor Cinema with a retractable Giant Flat-screen that can be viewed by over 20 Guests.
The Ocean Supremacy superyacht is able to accommodate up to 10 guests in 5 cabins.
The Master Suite crosses the entire beam of the Upper Deck with superior panoramic views. It features;
- King-size bed
- Luxury 3 Seater Sofa
- Extra large Flat-screen TV, Hi-fi System, Data based Film & Music Library & Wifi
- En-suite bathroom with double Spa Pool
- Walk in dressing room and vanity table
- Private adjoining solon office connecting to Bridge
4 Spacious Luxury Guest Cabins that feature;
- Queen-size bed
- Extra large Flat-screen TV, Hi-fi System, Data based Film & Music Library & Wifi
- En-suite bathroom with Spa Pool
- Arm Chair, Desk and vanity table

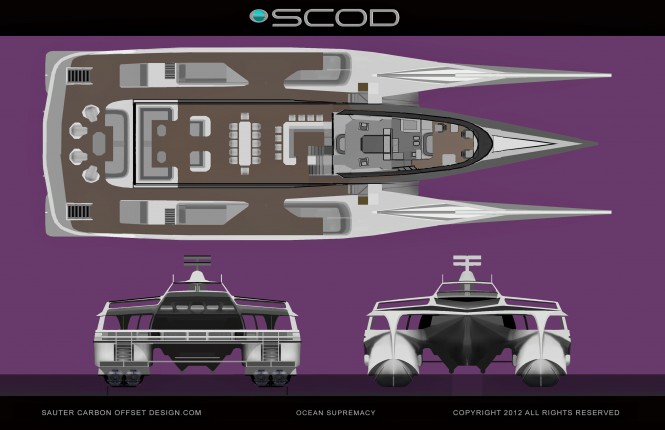

Yacht Ocean Supremacy Plan B
Cutting Edge Technology Featured in the 42m Ocean Supremacy Explorer
- SunPower Solbian Marine Solar Panels
- Maurer Sohne MDR Motion Damping Regeneration System
- SkySail Auxiliary Inflatable Traction Kite
- MTU Series 2000 Tier 4i 1163KW Engines & Gensets
- Siemens Electric Motors
- Anerson ASD 10 Surface Drives
- Rolls Royce Kamewa S3-125 Series Waterjets
- ZF / Siemens Hybrid Propulsion System
- State of the Art High Efficiency Wave-Piercing Tank Tested Hulls
- Ocean Yacht Systems Rim Drive Bow Thruster for GP Mooring
- MDI Retractable T-Foil Leveling System
- Lloyds approved Corvus Lithium – Polymer UPS < 2MWh
- SCOD Wind Tunnel Tested Aerodynamic Radome and PV Wing Spoilers
- Energy Star Equipment, Ocean LED lighting & AC & Refrigeration with Waste Heat Recovery.
Motor yacht Ocean Supremacy Plan A
Specifications of the motor yacht Ocean Supremacy
- Length overall: 42m
- Beam: 15.6m
- Draft: 1m
- Marine Grade Aluminum or Carbon Epoxy Composite
- Fuel: 45.000 litres
- Zero Carbon Cruising Range at 14 knots Unlimited
- Solar Hybrid Cruising Range at 18 knots 3,600nm
- Carbon Neutral Cruising Range at 18 knots 3,600nm
- Maximum Speed 55 knots
- 10 Guests
- 8 to10 crew
- SCOD 8m Super Marine T
