Mondo Marine is proud to present a preview of the all-new 43-metre motor yacht Project M43, beautifully penned by the Milan-based design studio ‘Hot Lab Yacht & Design’. Based on the same philosophy originally applied to the 50m luxury yacht M50, also designed by Hot Lab, superyacht M43 successfully strikes the balance between beautiful and practical, exterior and interior, lavish and livable spaces, with a welcoming family feeling enhanced by the mixture of her elegant and sporty lines.
New 43m motor yacht Project M43 by Mondo Marine and Hot Lab
THE GENEROUS VOLUMES ARE COMPARABLE TO THOSE USUALLY CHARACTERIZING LARGER BOATS, however without compromising the design dynamic and sporty connotation. The interplay of empty and filled spaces optimizes the introduction of large windows, often full height, and reduces the visual impact of the significant volumes.
THE AESTHETIC OF THE STERN AREA IS LOW AND SLEEK, characterized by the presence of two symmetrical staircases to allow access into the aft deck and, through here, to the beach club that thanks to its folding central part turns into a sea platform. This area has the dual function of recreation area and garage for the tender.

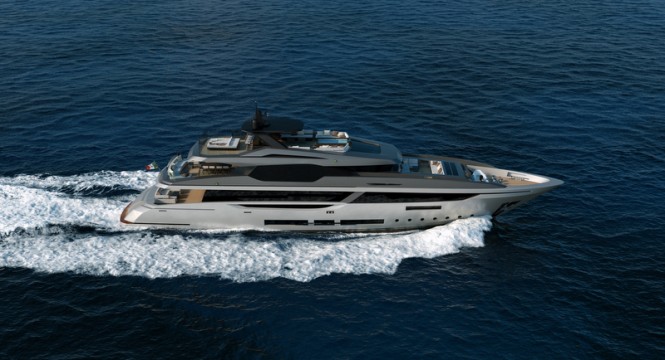

Superyacht Project M43 - side view
THE WIDE BODY TYPE OF UPPER DECK HOSTS ALSO THE WHEELHOUSE thus allowing optimum use of internal heights. The top, well developed in length to accommodate a very large fly bridge, is characterized by bold and dynamic lines harmoniously relating to the deck. Here rise the wide windows giving light to the upper salon, the wing-stations and the windshield characterized by a strong inclination. The windscreen forward area has been specifically developed in height in order to emphasize the surrounding volumes and to accommodate a large and practical outdoor living room.
SPEAKING OF THE FRESH AND INNOVATIVELY
DYNAMIC LAYOUT, THE SUN DECK IS DESIGNED AS AN AREA TOTALLY DEDICATED TO WELL-BEING. We find a large swimming pool that, set between two comfortable sunbathing areas, is practically invisible from the outside, a lounge area and a bar of considerable dimensions, whereas the aft area is conceived as a multifunctional area that can accommodate some sunbathing loungers or a comfortable dining table.
Motor yacht M43 - aft view
THE LOWER DECK FEATURES TWO MASSIVE FULL-BEAM VIP CABINS AND TWO FOR GUESTS AT THE CENTER, all of them with en-suites and so generously sized to suggest a larger vessel. In the forward area of the lower deck we find the crew quarters for 10 people complete with a large crew mess and a convenient laundry area.
THE MAIN DECK, CHARACTERIZED BY THE INTERACTION BETWEEN INSIDE AND OUTSIDE, HAS A GENEROUSLY SIZED INDOOR LOUNGE WHICH TENDS TO NATURALLY EXPAND TOWARDS THE AFT COCKPIT: the layout of the bar at the entrance to the main saloon creates a sort of axis of symmetry between the two lounge areas: the inner and the outer one, merging them effectively into a single element. Immediately further on is the dining area with full height windows giving again the feeling of being indoors and outdoors at the same time.

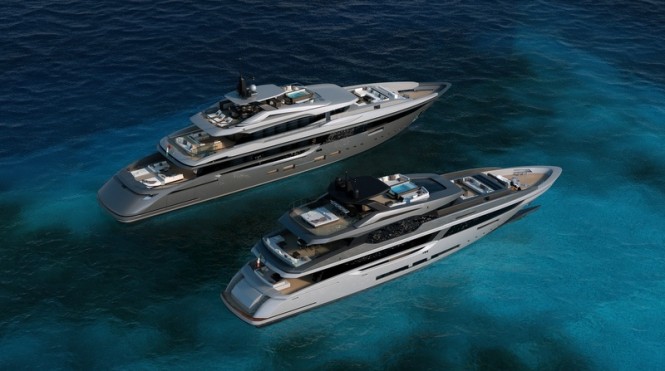

Superyacht M50 and luxury yacht M43
THE LARGE OWNER CABIN IN THE BOW FURTHER REINFORCES THIS CONCEPT BY HAVING ALL THE FIXED FURNITURE TO THE TRANSVERSE BULKHEADS and leaving only to a few sinuous and upholstered items the task of coming between the Owner and the openings to the outside armchairs and chaise lounges that do not actually hide the horizon.
THE LOBBY OCCUPIES THE CENTRAL PORTION OF THE MAIN DECK on the starboard side and leads to the other large semi-enclosed space of the motor yacht M43: the upper deck salon. A more informal room, deliberately designed with a symmetrical spiral arrangement which also in this case draws the guests’ attention simultaneously to the spacious outside dining area and to the indoor bar to the left, effectively creating two separate gathering places for the guests into one multipurpose space. Still on the upper deck is the wheelhouse with two side doors to connect with the wing stations.

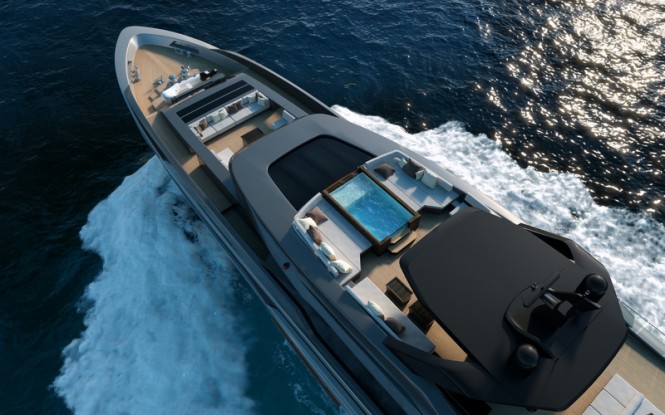

Super yacht M43 from above
FROM A TECHNICAL POINT OF VIEW THE HULL IS A STATE OF ART. The innovative hull has been patented by the Arrabito studio and guarantees 20 percent greater efficiency (lowering fuel costs) when compared with traditional semi-displacement hulls.
M43 YACHT – MAIN CHARACTERISTICS:
NAVAL ARCHITECTURE: ARRABITO NAVAL ARCHITECTURE AND MONDO MARINE ENGINEERING
EXTERIOR DESIGN: HOT LAB YACHT & DESIGN
INTERIOR DESIGN: TO BE DEFINED
HULL MATERIAL: LIGHT ALLOY
SUPERSTRUCTURE MATERIAL: LIGHT ALLOY
LENGTH OVER ALL: 43.00 m – 141.04 ft
BEAM: 8.78 m – 28.79 ft
DRAUGHT: 2.45 m – 8.04 ft
ENGINES: 2 x MTU 16V 2000 M94
MAXIMUM POWER: 2 x 1,939 kW
RANGE AT 12 KNOTS: > 3.400 nm
CRUISING SPEED: 20 knots
CLASS REGISTER: RINa C X Hull l Mach YCH (EFP) COMF (Y)
INTERNATIONAL GROSS TONNAGE: Under 500 GT
