The striking Motor Yacht Equinox concept design is a highly innovative 45M Fast catamaran, born from a conversation between yacht Designer Andrew Trujillo and Naval Architect & Designer Adam Younger.

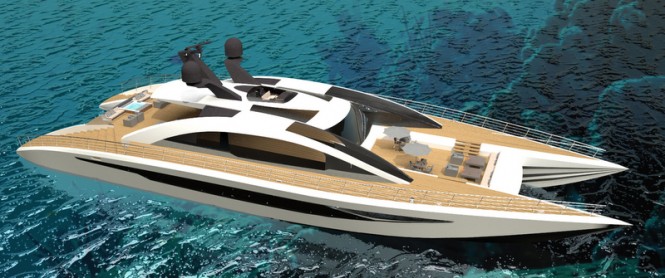

45M Fast Motor Yacht EQUINOX Concept by Andrew Trujillo and Adam Younger
Adam Younger is very well established as a designer of seriously fast vessels of all sizes, so project Equinox (as designers decided to call her) hoped to combine Andrew’s experience in designing luxury super-yachts (interior design and exterior styling) with Adam’s knowledge and know how.
Andrew Trujillo says:
“Some months back, Adam and I were talking about the possibility of collaborating on a conceptual project. Our conversation led us into discussing the fact that many motor catamarans tend to be practical yet often lack visual excitement. So we decided to design a 45M fast catamaran that was exciting both in terms of performance and looks, yet retained the practical elements.”

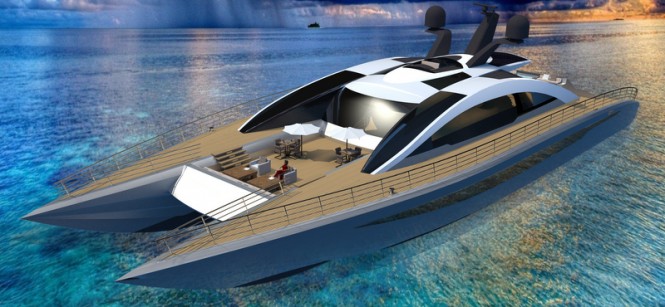

Superyacht Equinox concept
“I set out to capture much of the excitement present on the racing catamaran speed boats that Adam has designed, but interpreted on a 45M Luxury Motor Yacht platform. I felt that it should appeal to a clientele that might normally be attracted to a fast Italian fly-bridge motor yacht. Perhaps she would carve a new niche. At the same time I sought to produce a design that was fresh and was suited to a catamaran. You can view many motor catamarans from some angles and they just look ungainly. I hoped that with this design we could move the design language of catamarans on, towards a sleeker, edgier direction.”
The possibilities that open up with a catamaran both in terms of performance and layout are very interesting. Essentially, you approach the internal space offered on a 60 metre mono-hull motor yacht, on a yacht of length of 45M overall.

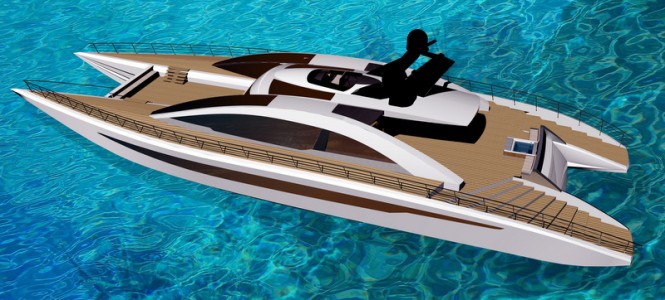

Equinox Yacht Concept from above
“However, as the project progressed, I came to realise that the hulls that Adam had designed were not only aimed at performance and comfort on the water, they offered lots of internal space. This came as a welcome surprise as I was designing the internal layout. I was expecting to have to make many compromises when designing the cabins and areas to be situated on the pontoons, but no, I had plenty of room to spare, it was a real dream.”
The other aspect where designers sought to challenge the norm was on propulsion. They planned to site the engines not on the pontoons, as would be the convention, but above the central tunnel, in a space that was ideal. It could liberate lots of space for accommodation. It would though, require the yacht to be either diesel electric or to use hydraulics to propel the water jets. This is something that opens up exciting options as well as technical challenges. If the yacht uses diesel generators, they can operate at optimal efficiency more of the time. The yacht could potentially run as an electric yacht for short periods of time (for instance entering and exiting harbours) if it had a bank of batteries. The layout of the yacht is far more generous than comparable yachts of similar overall length. This is evident as you would naturally expect on the main deck, which has a vast open plan area which includes a large dining area, lounge, pilothouse, and a second bar lounge. The large expanse of glass in all directions permits great panoramic vistas.

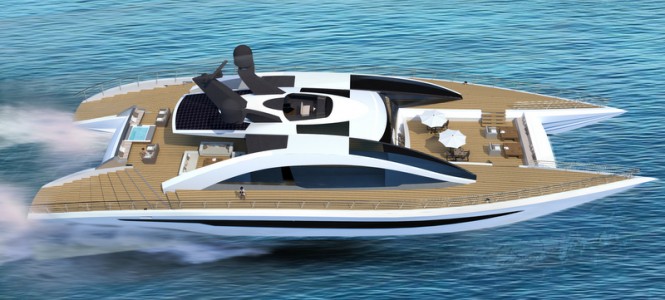

Luxury yacht Equinox concept at full speed
Accommodation is broadly divided into two. The Starboard pontoon has very generous accommodation, allowing for a very large Master cabin forward, two large VIP double cabins and a spacious twin cabin aft. The layout affords maximum privacy and isolation of noise for guests and crew alike.

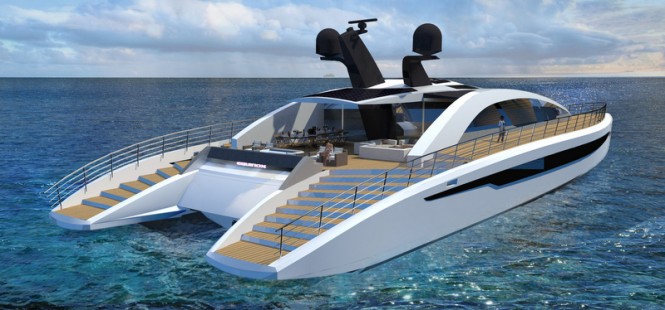

Equinox superyacht concept - aft view
Accommodation for crew is housed in the Port Pontoon, with three twin cabins and a further single cabin. However, all crew cabins have additional Pullman bunks allowing for an additional four crew if required. The Port side also has the main galley, laundry and crew mess areas. The central tunnel area has plenty of space even on the lower deck, which has allowed us to incorporate technical spaces, engine/generator rooms, and an ample garage with space for a RIB tender, two waverunners and a couple or three jetskis. Some further space available in the central tunnel area can be dedicated to crew accommodation, if desired.

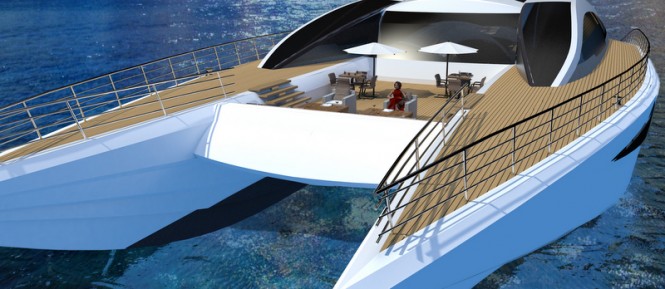

Equinox Yacht Concept
Adam Younger says:
“The concept for the Equinox catamaran has given the ideal opportunity in taking aspects of performance multihull design and translating them into a larger design for the SuperYacht market. As such there are many changes and different concentration of priorities but it has still been possible to exhibit high performance characteristics.
At 45m LOA and an overall beam of nearly 17m (2.66 ratio) we have been able to provide a design with a large accommodation platform and high volume / displacement hulls. This works very well in providing a spacious and adaptable interior and also from a performance aspect in giving buoyancy and initial lifting characteristics.
Much effort has been placed in providing an efficient and easily driven hull design. As with most planing hull catamarans – this requires concentration on initial acceleration and reducing wetted surface area. To this end a stepped hull configuration has been used to increase lift and also the postion of overall lift. The steps are designed using a system known as tapered steps, as developed by Adam Younger Design.
The design is matched with twin lifting flow breaking strakes to the inner sidewalls of the asymmetric hulls. Finally, the hull design in section utilises a multi- deadrise angle form to provide a mixture of lift and handling – with variable deadrise angles into the forward sections to combine with good sea keeping abilities.
The tunnel height at 2m at the transom compared to a tunnel width of 8m to give a ratio 4 is designed to give a combination of stability and clean running at speed. The tunnel design also incorporates a central pod which then shapes into wave breaking form in the forward sections for extreme conditions.
The hull design with its many features gives the possibility of high speeds in the region of over 50 knots depending on power – but combined with new levels of comfort, stability and efficiency.”
About Andrew Trujillo
With over twenty years of experience designing a very broad range of yachts, Andrew Trujillo Design is a small and friendly studio. Andrew undertakes new designs and refits, interior and exterior design for custom, semi-custom and production yachts. He also will undertake other projects, from residential to transport related designs. He has had the good fortune of designing yachts from 35 feet to over 120 metres, ranging from fast Italian sports yachts to river cruisers, exploration yachts, sailboats etc. He has been involved in the design and/or design project management of over 30 built yachts in countries as varied as Italy, Netherlands, UK, US, Turkey, China, Taiwan, Russia & Brazil.
About Adam Younger Design
Adam studied and completed the industry respected Yacht & Boat design course at Southampton College and immediately specialised in the powercraft markets. There were many opportunities to do original research and even now some of the work carried out on planing hull design theory is still very relevant and used. Adam’s final year thesis – investigating aerodynamics through wind tunnel testing of a catamaran gained a distinction. After leaving College Adam worked in the design offices of Souter Shipyard on the Isle of Wight where work covered craft mainly for the commercial market but also leisure, race and sailing.
On leaving Souters Adam formed his own company, largely working on contract for other boat builders. Contract work also included periods in Westland Aerospace and other areas of engineering. This actually gave a really balanced and varied background into design, processes and different aspects of business. Private marine design work was also being carried out and development work being undertaken. The race market was also becoming more important and success was soon to emerge from early designs. Work was also developing in the emerging RIB market, initially with Revenger through which the performance RIB in the UK was becoming noticed!
During the latter part of the 90’s Adam carried on various projects for the UK and foreign markets. Key spells of development included contracts leading the design office of Cougar Marine – covering raceboats to high speed patrol craft and then working in the offices of the RNLI on various aspects of lifeboat design and draughting. Race and championship success also continued for AYD boats both with Adam driving and other crews.
In recent years AYD has increasingly specialised in performance hull design working with many different clients in creating many exciting and significant boats. Work has been particularly successful in the RIB markets and also work in many different countries. The reputation and potential of AYD continues to expand…
