Trinity Yachts are delighted to report that they have recently delivered their all-new 50-metre motor yacht Lady Sura (T059), following her successful sea trials in December 2012. Lady Sura superyacht is a magnificent tri-deck custom built vessel, featuring an aluminum hull as well as superstructure.
50m Trinity superyacht Lady Sura (T059) - Sea Trial December 2012 Photo credit: 2013 Trinity Yachts, LLC
Features of the beautiful yacht Lady Sura include a full beam two-level master suite – to enjoy sleeping on the lower level and relaxing to the view on the upper – on the main deck with forward panoramic viewing windows. Four guest staterooms are located below and one VIP guest stateroom on the 01 deck. The interior, by Patrick Knowles Yacht Design, is rich in Anigre, mahogany and harmonizing burl finishes.
For optimal outdoor living and world class views, Lady Sura superyacht’s sky lounge is panoramic and her flybridge features a hot tub, numerous sunpads and lounge seating aft. A large tender garage aft provides ample storage for the tender, jet skis and water toys.
Luxury yacht Lady Sura has a top speed of over 19 knots with a 4,000 nautical mile range at displacement speeds for extended cruising. Her draft of 7’8” (2.4m) enables Lady Sura to frequent shallow water harbors and ports, making island hopping easy and accessible.
Lady Sura is every meter a Trinity and exemplifies what it means to build a custom yacht. So much so that over the course of her build, Lady Sura’s owner asked Trinity for design modifications to the original contract, allowing her owner to take full advantage of the most up-to-date technologies available. More, this flexibility also illustrates the unique and winning collaboration between owner, builder and broker.

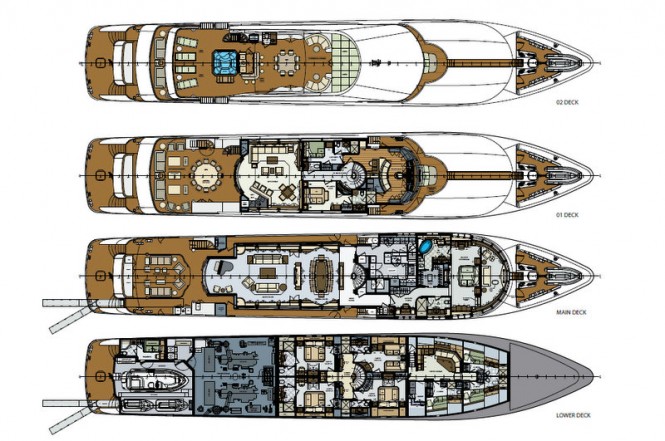

Lady Trinity superyacht - General Arrangement Photo credit: 2013 Trinity Yachts, LLC
Main Characteristics of the 50m Trinity superyacht Lady Sura (T059):
Length 164’ (50m)
Beam 28’ (8.5m)
Draft 7’8” (2.4m)
Maximum Speed (Trial Load) 19 knots, approximate
Construction Aluminum
Classification ABS, MCA Compliant
Marine Designer Trinity Yachts, LLC
Interior Designer Patrick Knowles Yacht Design
Engines (2) Caterpillar 3512B “E” Rated at 2,250hp at 1,925 rpm
Generators (2) 115 kW Northern lights @ 1,500 rpm
Bow Thruster 150 hp hydraulic
Stabilizers Quantum Mod QC 1,800 two fins 3.5 sq. m. ea. “Zero Speed”
Fresh Water Capacity Approx. 2,600 gallons (9,842.04L)
Fuel Capacity Approx. 16,100 gallons (60,945L)
Sewage Tank Capacity Approx. 300 gallons (1,136L)
Gray Water Tank Approx. 300 gallons (1,136L)
Height (waterline to top of flying bridge mast) Approx. 50’ (15.24m)
Displacement 284 long tons lightship
Cruising Range (with 10% fuel reserved) 4,000 nautical miles at 11 knots
Accommodations
Owner’s Party Twelve (12) in six (6) staterooms
Crew Twelve (12) total in six (6) cabins
Special Features
– Full beam two-level master suite on main deck with forward panoramic viewing windows
– Four (4) guest staterooms located below main deck
– One (1) V.I.P. stateroom located on 01 deck
– Panoramic Sky Lounge and Flybridge with Hot Tub
– Large tender garage aft for storage of both tender and jet skis.
– Interior to be Anigre, mahogany and assorted burl combo
– Interior Square Footage 5,060 Approx.
Delivery 2012

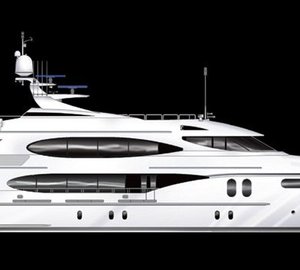

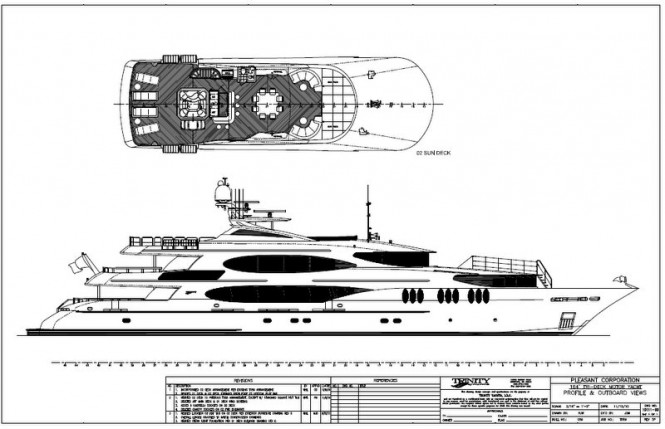

Luxury motor yacht Lady Sura (T059) - Profile and Outboard Views Photo credit: 2013 Trinity Yachts, LLC
