The 55m luxury motor yacht developed by the respected Dutch builder Hakvoort is currently for sale. Available in multiple configurations, the 55m Hakvoort superyacht is a magnificent semi custom vessel with sophisticated exterior by Cliffort Denn Design , boasting a fast displacement hull to achieve speeds up to 30 knots.

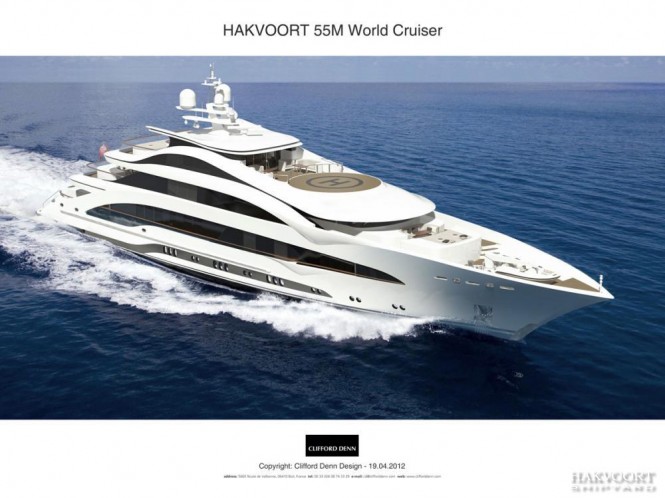

55m luxury motor yacht by Hakvoort Shipyard
The 55 meter semi custom range Hakvoort luxury yacht features an adjustable MTU engine package providing various top speeds. The clever design shows an very efficient fuel consumption 15 % lower than other displacement hull designs. For speeds over 17 knots the hull needs to be build out of aluminium.

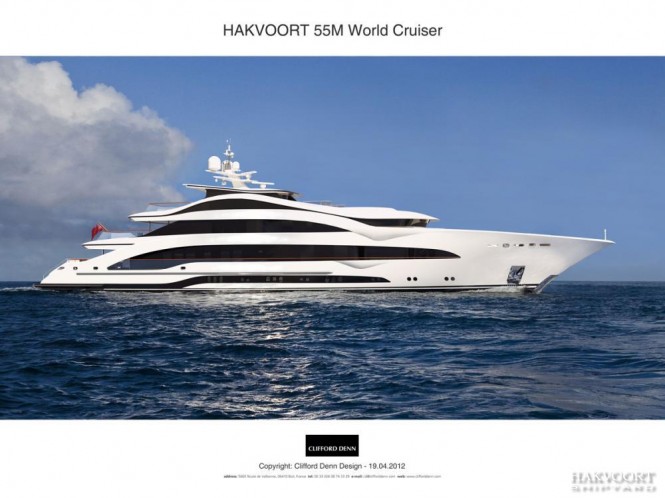

55m Hakvoort superyacht - side view
The proposed general arrangement of the 55m Hakvoort superyacht accomodates on the main deck a full-beam master suite and ensuite bathroom with his-and-her heads, adjacent to this suite is a smaller cabin as private owner’s study/ salon. On the lower deck, there are 5 additional ensuite staterooms, including a VIP suite with queen bed, and four queen or one twin-bedded staterooms.

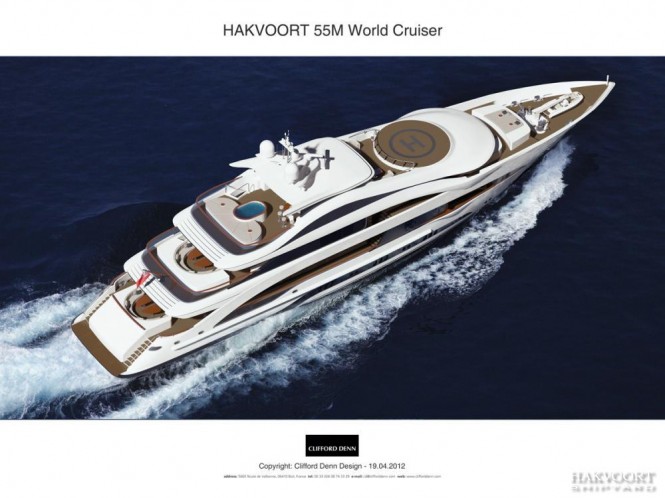

55m Hakvoort luxury yacht - view from above
Located forward on the sundeck a touch and go type helipad is integrated suitable for maximum helicopter weight of 2000 gt.
Main Characteristics of the 55m luxury motor yacht by Hakvoort Shipyard:
Type of yacht Twin screw ocean going motoryacht with fast displacement hull allowing the hull to reach speeds up to 30 knots
Project Development Hakvoort Shipyard
Exterior Design Cliffort Denn Design
L.o.a. 55 m /180’45” ft
Beam (moulded) 9.4 m / 155’51” ft
Beam (overall) 9.8 m / 32’15” ft
Draft 2.85 m / 9’35” ft at 50 % load
Gross tonnage 730 gt (steel hull) 700 gt (aluminium hull) estimated
Superstructure aluminium
Speed max 17 (steel hull) and 30 knots (aluminium hull)
Main Engines with steel hull 2x MTU main engines, model 12V4000M53, engine rated power 1380 kW at 2100 Rpm per engine connected to a free standing ZF gearbox with a reduction ratio of 4,52 :1
Main engines with alumium hull 2x MTU main engines, any 4000 range engine up to the 20V4000 series can be installed 12V4000M93L, rating 2580 kW per engine providing a top speed of 21 knots/16V4000M93L, rating 3440 kW per engine providing a top speed of 24 knots/20V4000M93L, rating 4300 kW per engine providing a top speed of 27 knots
Generators Two Northern Lights diesel generators, type M1276A1 rating 200 KW at 50 Hz, 1500 Rpm, 230/400 V. One 50 kW emergency generator
Class +100A1 SSC Yacht Mono G6 +LMC UMS
Special features helipad touch and go type, suitable for a maximum helicopter weight of 2000 kg/extremely efficient hull design with bulbous bow/Adjustable eninge package and speeds/Interior layout and standard adjustable
Accommodation Full with master stateroom and owner’s study, accomodation for 10 guest in a VIP cabin and four twin cabins/Seven crew cabins including separate captains and officers cabin all with ensuite bathrooms
