The prominent US builder Delta Marine recently reached two important milestones in the building of its latest motor yacht Project Invader (hull 211042). Due to be delivered in spring 2013, the 66m steel and composite superyacht Invader’s steel hull was recently transported from Delta’s metal hull facility to its main assembly yard for final fit out as well as construction.
66m superyacht Project Invader by Delta Marine (hull 211042)

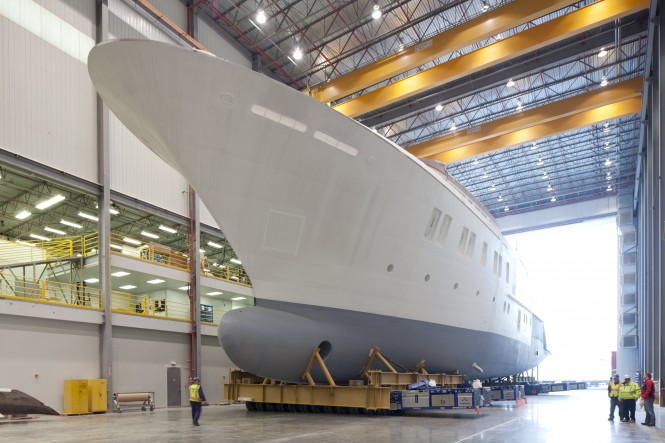

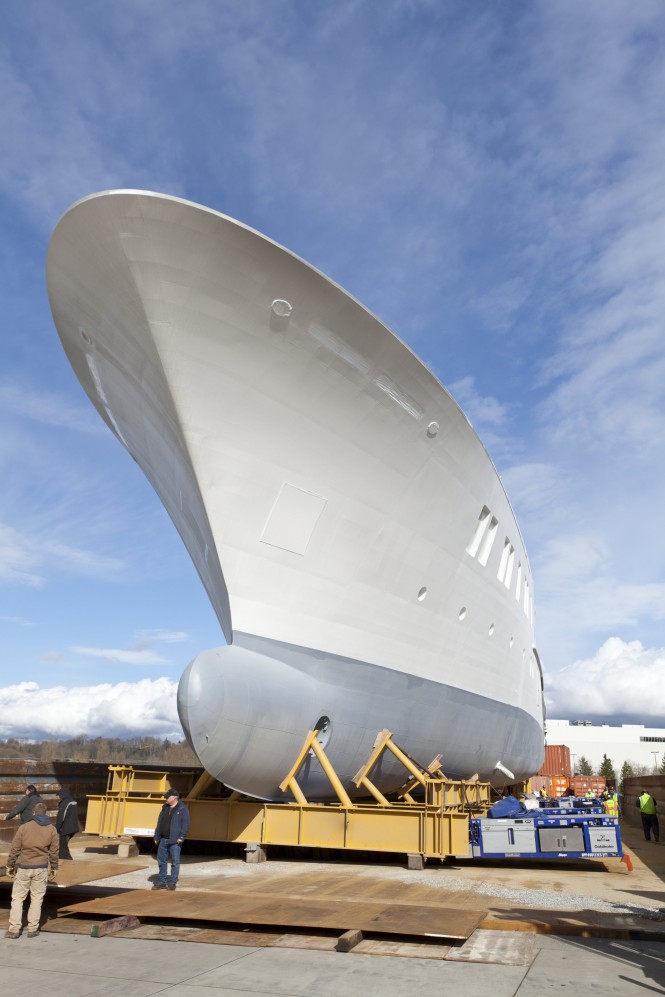

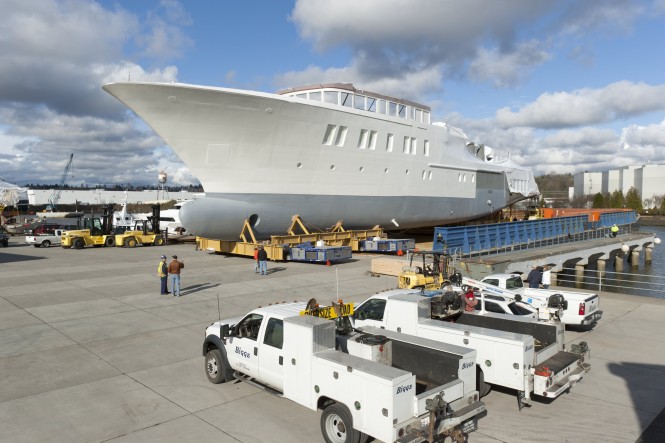

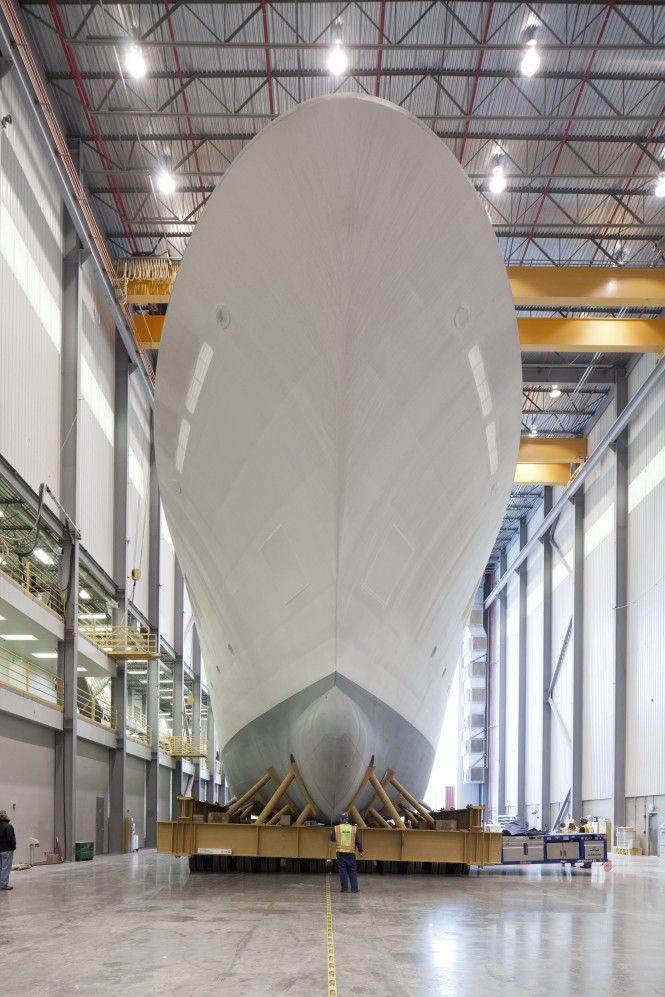

The process spanned a two day period in which Delta transported the impressive 800 ton hull by barge to Delta’s main yard via the Duwamish waterway. Once at Delta, coordinating with the tides, the hull was rolled ashore and into Delta’s high-bay assembly building. With the hull move complete, Delta was ready to lift the superstructure in place.

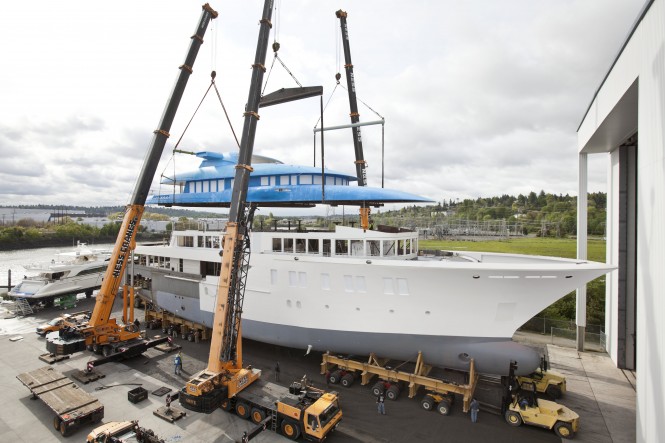

Measuring 138’ – 8” long by 21’ high and weighing more than 138,000 lb, the superstructure was lifted into the air using three 550 ton cranes and set in place. Not only is the size of this pre-outfit superstructure module remarkable but so is the fashion in which it was constructed.
Delta Marine Invader megayacht
The Delta Design Group, utilizing finite element analysis and its own advanced engineering, designed the components using a combination of composite materials, steel and aluminum. The best material was chosen for each application creating a strong, lightweight superstructure. The result – expansive windows with minimal stanchions, breathtaking views, maximum use of space, high ceilings, and efficient construction.
Due to the aggressive delivery schedule of the luxury yacht Project Invader, Delta designed the build sequence to take place both from the top down and the bottom up simultaneously. This allowed Delta’s composite crew to begin working on the superstructure module while the steel yard was completing the hull. With all the marine trades in house and at one facility, Delta was able to coordinate this effort seamlessly and efficiently.
Project Invader superyacht by Delta Marine
About Invader
The 66-meter mega yacht Project Invader has an ice-strengthened steel hull and composite superstructure. With a 43’ beam, 12’ 8” draft and 1650 ITC, Invader has expansive interior volume, generous fuel capacity, and enhanced ability to accommodate extended worldwide cruising.
The Invader yacht’s impressive size is balanced with tailored lines and classic proportions. Her composite superstructure allows for sculpted shapes and reduced maintenance. The vessel is being built to Lloyd’s Register and LY2.
Invader megayacht’s interior, designed by Diane Johnson Design along with Johnson, Wen, Mulder & Associates is defined by large windows, high ceilings and grand foyers. The interior favors traditional classic yacht design with walnut burl and crotch mahogany veneers, raised paneling, beamed overheads, and fluted columns.
66m megayacht Invader
Additional highlights include a theater, gym, expandable dining table for up to 20 guests with a 180° sliding doors and service pantries on each deck, all of which demonstrate her remarkable size and arrangement.
The upper deck is a private owner’s oasis with a forward facing stateroom, private deck, salon and office. Special consideration was given to the outdoor spaces including a folddown beach cabana at the stern with bar, day head and an extra large sundeck with spa. Low bulwarks and large windows provide a dramatic and panoramic view of the
outdoors.
Powered by twin Caterpillar 3516 main engines and carrying over 50,000 gallons of fuel, the superyacht Project Invader will have a 5,000 nautical mile range at 12 knots and a maximum speed of 16.8 knots. Quantum Zero Speed stabilizers will ensure a nice gentle ride both at anchor and underway. Her tender garage with side hull doors and overhead gantry cranes for deployment, will stow a RIB tender, jet skis and a custom 28’ Italian style launch.
66m luxury motor yacht Project Invader by Delta Marine
The Delta Design Group is responsible for naval architecture, space planning and exterior styling. Project Management for the owner’s team is being handled by John Posgay of Even Keel Yacht Project Management.
