Previewed at the 2011 Abu Dhabi Yacht Show, the 65m motor yacht ONE is a concept developed by France-based CMN shipyard. Created by CMN´s in-house design team, the new ONE superyacht features an interior space normally found on much larger vessels.
CMN luxury motor yacht ONE
By her unique design, the luxury yacht ONE has the volume of much larger yachts of around 70 to 75-metres, allowing for a very high level of services but still offering the ability to reach remote places and to enter small harbours.
The CMN super yacht ONE features a vertical bow with a long foredeck and fluid exterior lines that contribute to her slender profile, while aiding to the practical operation of the vessel, confirmed by extensive tank testing. The foredeck can also accommodate a Eurocopter EC135 platform, with a lazarette located underneath that houses an open tender and an eight-metre limousine tender.

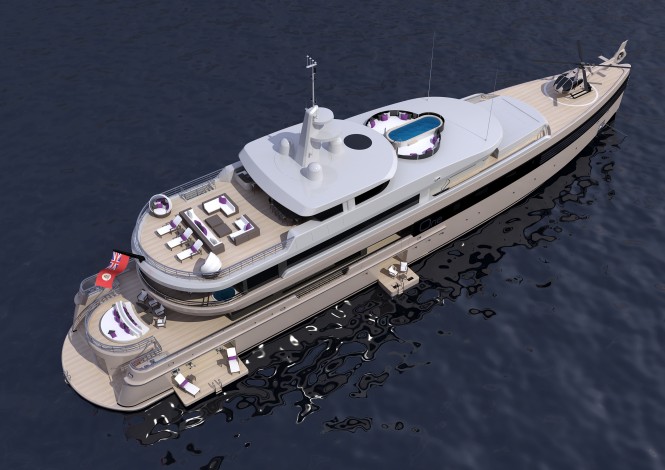

ONE Superyacht - view from above
A total of 14 guests – including the Owner – can be accommodated across four guest suites on the main deck, two VIP suites on the upper deck next to the owner’s office, with the Owner’s suite situated adjacent to this, towards the aft of the yacht. This area is fully dedicated to the Owner and includes a large terrace with its private Spa Pool. The dining room and main salon are situated on the main deck aft and include a bar and a wide entrance to the outside deck.
The general arrangement is in line with the new trends of on board living without compromising functionality. The use of the in-out arrangements provides a totally unique layout that allows for a living experience with the outside environment, the sea, the sky and the horizon. The interior layout also offers a massage room, a wine storage area, a hammam and a sauna amidships on the lower deck, with the crew mess, lounge and cabins forward.
The 65m luxury yacht One by CMN Yachts
The five-deck ONE yacht offers a large swimming pool on the sun deck, which is surrounded by sun pads. Aft of this deck is another lounge, bar and dining room.
Project ONE can be fitted with hybrid propulsion. She will achieve a maximum speed of 16 knots with two 1640 kW diesel engines and 6 knots with the electric auxiliary motors.
Technical Specifications of the luxury motor yacht ONE by CMN Yachts:
Lenght Overall: 65.20m/213´9´´
Beam Overall: 11.80m/38´7´´
Depth to main deck: 6.20m/20´3´´
Draft: 3m/9´8´´
Displacement: 950 tonnes
Gross tonnage: 1535
Speed: 16.5 knots
Range: 5000 miles at 11 knots
Diesel oil capacity: 100 tonnes
Fresh water capacity: 30 tonnes
Construction: Steel hull with aluminium superstructure
Classification: Bureau Véritas
Statutory regulation: MCA Large Commercial Yacht Code LY2
Flag: Cayman Islands
Guest accommodation: 14 in 7 staterooms
Crew accommodation: 1 Captain + 16 Crew in 9 staterooms
Main engines: 2 x 1640 kW Diesel engines (Caterpillar or MTU)
Stabilisation: 4 Fins Quantum zero speed stabilisers
Tender: 1 Sport tender 8m/26´2´´- 1 Limousine tender 8m/26´2´´ – 1 Eurocopter EC135 platform
