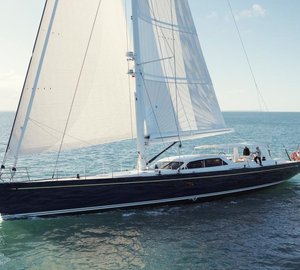

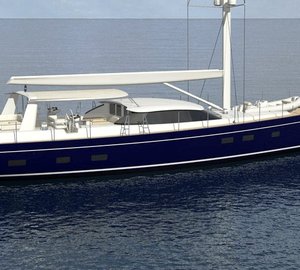

Sailing Yacht Antares III is a 30m (98ft) custom built composite performance cruising sloop from the design board of Dixon Yacht Design. Built by Yachting Developments to meet and exceed strict Germanischer Lloyd and MCA classification survey requirements, the vessel is incredibly strong yet 25-30% lighter than similar vessels built in Aluminium. The composite structure is post cured epoxy Eglass/Carbon/Kevlar incorporating high strength foam sandwich technology. The hull has a Kevlar outer skin, for increased impact resistance.

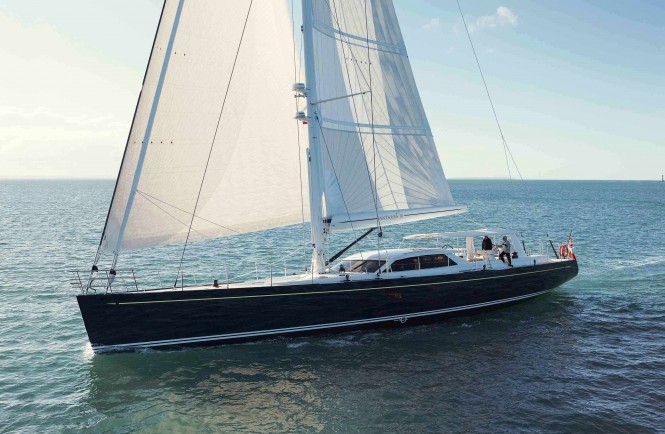

Sailing yacht Antares III designed by Dixon Yacht Design and built by Yachting Developments

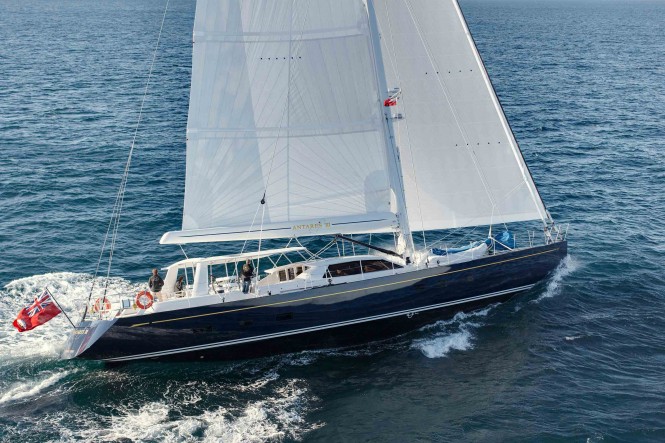

Sailing yacht Antares III
The owners design brief was to scale down the owner’s previous 40m yacht also designed by Bill Dixon which the owner felt to be to be a little too impersonal as it required a large a crew.
S/Y Antares III is well equipped, designed to cruise the world in comfort and be self sufficient for extended periods of time. Lithium Ion batteries and efficient onboard systems provide extended silent ship mode for the vessel when sailing or at anchor in a quiet bay.
Antares III was constructed in less than 400 days, unprecedented for a custom vessel of this size and level of quality. The owner considered potential shipyards internationally, but the decision to award the build contract to Yachting Developments was made partly due the limited choice in high quality composite shipyards with experience in building vessels of this type and limitations on who would be able to deliver superyacht Antares III to the highest of quality within the short build time frame.

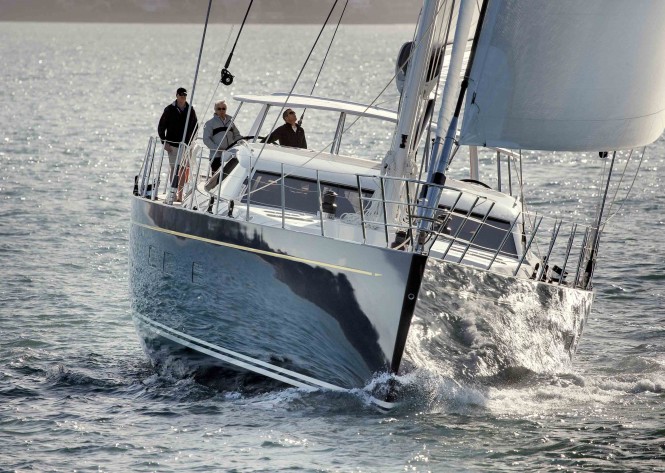

Sailing yacht Antares III by Yachting Developments

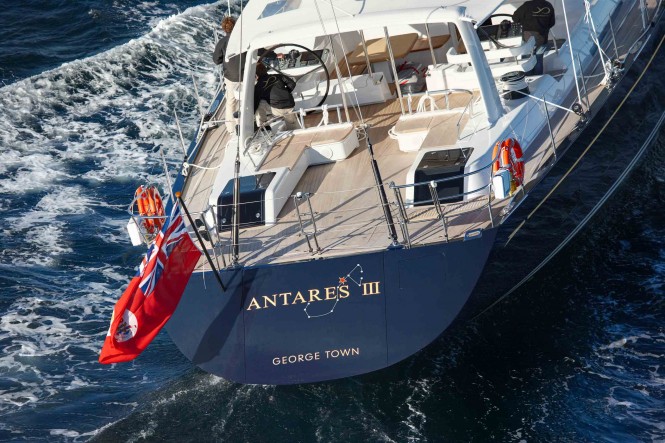

Sailing yacht Antares III - Aft View
Ian Cook, Yachting Developments Managing Director, flew to Europe to meet with the owner, the meeting was successful and resulted in the contract being negotiated and signed on the same day. Ian returned to the shipyard bearing news that Yachting Developments would be commencing build in 2010. Given the state of the economy at that time, it was the perfect way to end the year and send the staff off on their annual summer vacation knowing that when they returned in 2010 it would be full steam ahead on the project. While this short build time is not the norm, Ian Cook and his team thrived on the challenge and with the expertise and knowledge within his staff it’s not a challenge they are likely to turn down in the future.

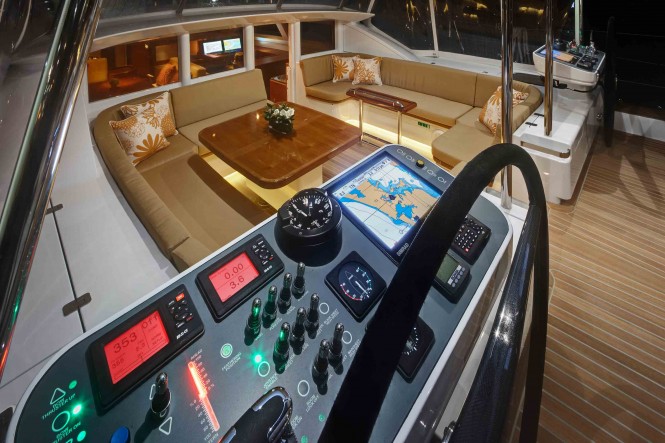

Sailing yacht Antares III - Cockpit

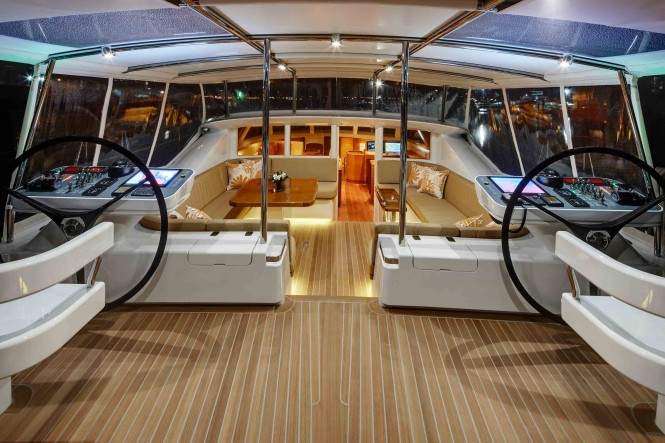

Sailing yacht Antares III - Cockpit 2
The owner visited the project and took the opportunity to enjoy the nature and beauty of New Zealand on three occasions. For Patrick Yeoward, the Owners Representative, this was the third new build with this owner, so he knew him well enough to be able to make decisions quickly on his behalf.
When yacht Antares III was launched, the weather was not too forgiving and strong winds and rain were not ideal, but she was launched smoothly and on time.
Patrick Yeoward, Owners Representative, describes the launch “They say that things run like a Swiss watch, well that will have to be rephrased to a Yachting Developments launch… The rig was stepped, on time. The boom loaded, on time. And moored up, on time. All involved from the Owners side would like to congratulate Ian Cook and his team at Yachting Developments for a job that was most certainly well done.”
Design comment: Bill Dixon, Dixon Yacht Design
“Comfort and performance in equal measure were the requirements of the owner of the 30m Antares III project; an owner for whom we have already designed two yachts for. Antares III is a powerful yacht but capable of being sailed with a relatively small crew. Composite construction keeps weight down and allows us to fully exploit additional interior volume in crucial areas of the accommodation. Weight considerations have also affected the choice of rig, and the carbon rig and rigging, as well as obviously reducing weight aloft, will also increase stability.”
Comfort starts on deck, which is designed to have different socialising areas, with aft deck seating, the guest cockpit itself, and additional informal seating forward in the foredeck tender recess. The interior layout focuses very much on the split level pilothouse, a focus point of the design; the aft windows and door fold away to give a cohesive indoor / outdoor living space with the guest cockpit. A carefully thought out living plan is essential on any yacht, and on the Antares III yacht the pilothouse configuration allows the integration of a ‘serious’ engine room, with full standing headroom, making maintenance both efficient and convenient.
Sailing yacht Antares III - Engine Room
Interior comment: Jonathan Rhoades, Rhoades Young Design
The challenge for Rhoades Young was to create a clean and contemporary interior, whilst trying to avoid the usual trappings of modern styled yachts. We combined modern furniture detailing and strong formal architectural symmetries with warm traditional woods and careful upholstery detailing” says Jonathan Rhoades.
INTERIOR
The horizontal grained blond teak interior designed by Rhoades Young Design was manufactured in-house by Yachting Developments specialist tradesmen. Muted tones and colours keep the interior calm, quiet and elegant.
UPPER SALOON

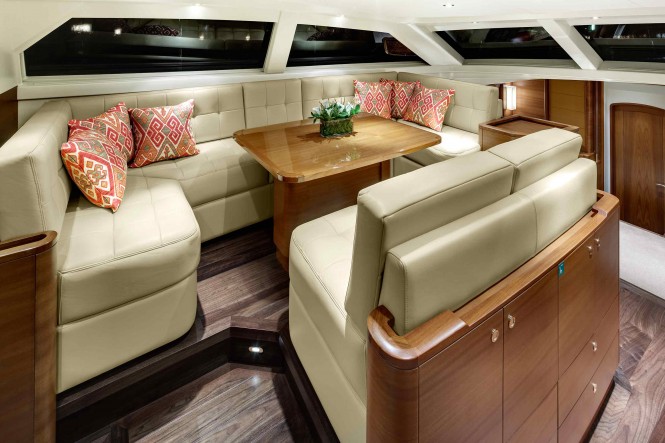

The pilothouse upper saloon is spacious, light, and airy. A raised settee and table to port allows all round vision while seated. Large opening pilothouse windows aft allow interaction with guests and helmsman in the cockpit area. The navigation area and bar are located to starboard.
Sailing yacht Antares III - Upper Salon

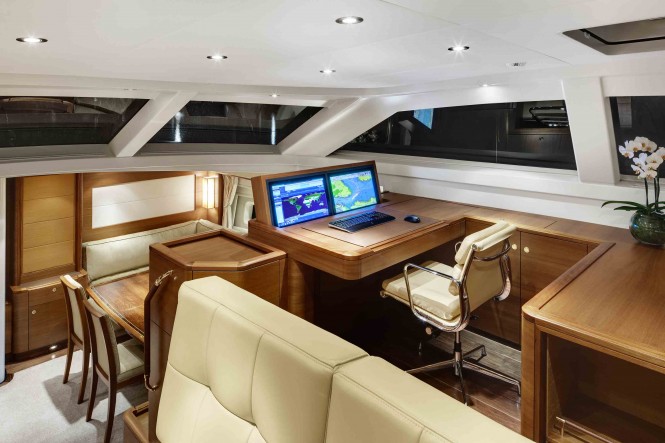

Sailing yacht Antares III - Nav Station
LOWER SALOON
The lower saloon of S/Y Antares III features a warm and comfortable atmosphere with large inviting armchairs, coffee table to port and pop up flat screen television. The lower saloon to starboard can be used as an open casual area, alternately in a matter of seconds it can be transformed into a formal dining area featuring high gloss walnut and gold inlaid dining table.
Sailing yacht Antares III - Lower Salon

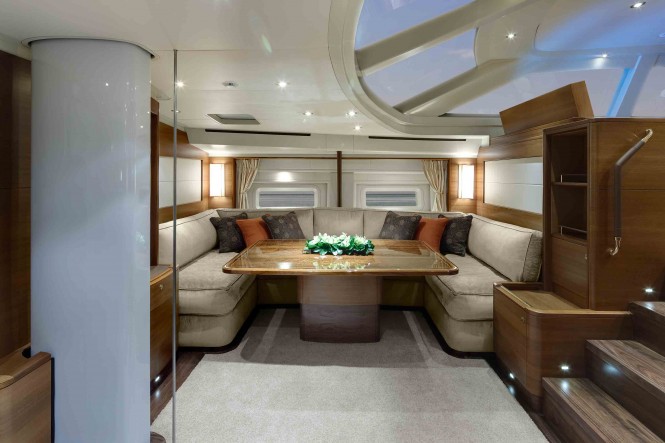

Sailing yacht Antares III - Lower Salon Dining
MASTER CABIN
The spacious full beam master cabin features soft comfortable armchairs, generous sized ensuite and private access to the aft deck. Natural light streams into the cabin through large opening skylight deck hatches and large fixed topside potholes strategically located throughout the cabin.

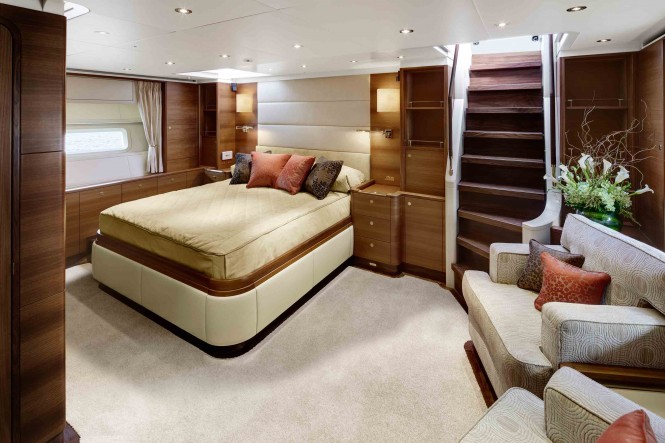

Sailing yacht Antares III - Master Cabin
GUEST CABINS

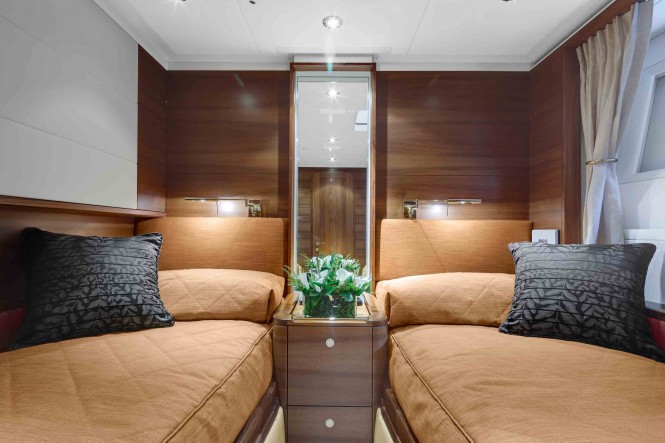

The guest accommodation is located aft on either side of the central companionway leading aft to the master cabin. The starboard guest cabin features a double queen berth. The port guest cabin features twin berths with a concealed optional third Pullman berth. The two guest cabins each have generous ensuites, the port guest ensuite also acts as a day head.

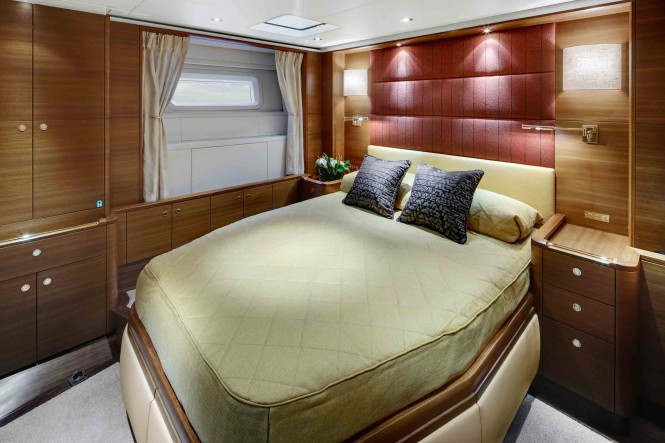

Sailing yacht Antares III - Guest Cabin
Sailing yacht Antares III - Twin Cabin
GALLEY

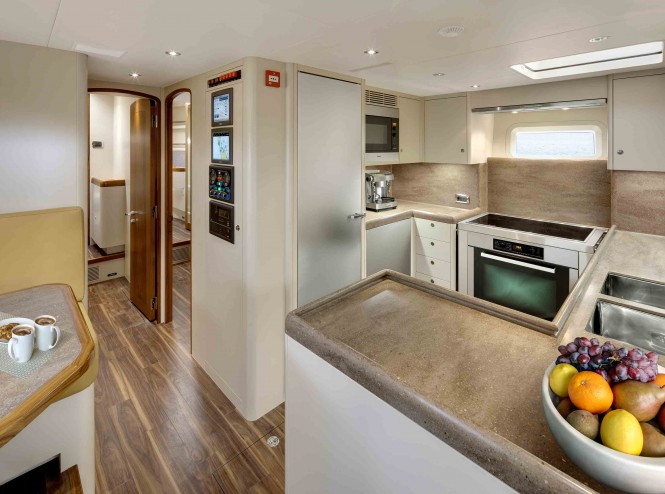

The galley to starboard features corian bench surfaces, generous storage, a large stand up fridge/freezer, and a large custom made under floor freezer. Adjacent to the galley, to port, is the crew mess area which includes deck access and laundry.
Sailing yacht Antares III - Galley and Crew Mess
CREW ACCOMMODATION
The crew area is built to the same high standard of finish as the rest of the vessel with the addition of industrial synthetic flooring. The captain’s cabin is to starboard, the crew twin berth cabin is to port, and both have generous ensuites and overhead storage.
SAILING
The sailing yacht Antares III sports a state of the art keel stepped carbon fibre mast, carbon fibre furling boom and carbon fibre standing rigging, all geared around enhanced sailing performance. The mainsheet is attached to an arch aft keeping the mainsheet clear of the passengers and crew.
The sails and mast were custom built in New Zealand. The generous sail plan gives an upwind area of 453m2 and a downwind of 800m2. The owner and crew were extremely happy with the vessels performance. Under power Antares III cruises at 11 knots with a motoring range of 3,600nm at this speed.

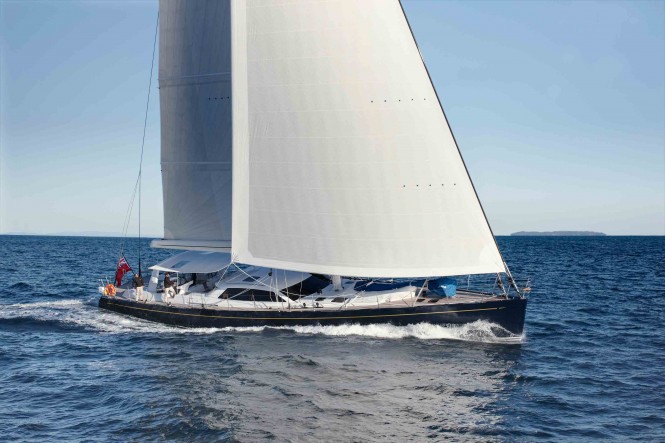

Superyacht Antares III by Yachting Developments
ENGINE ROOM
The engine room is impressive; it features full headroom and is located under the pilothouse. The engine room can be accessed from the port side deck and internal access is via a watertight door to starboard of the aft companionway. Access to the pump room forward is via a forward watertight door.
PUMP ROOM
The well presented pump room is located under the lower saloon. The pump room houses main halyard and mainsheet captive winches, water purification units and pumps. Access is via the Engine room and crew area.
GENERAL
“Antares III has been a very enjoyable project to work on, the team here at Yachting Developments thrived on the challenge. To build such a high quality custom Superyacht in the timeframe requested by the client is remarkable” says Ian Cook, “during the construction period only 3 full weekends of overtime were required, and we still shut down for three weeks over the Christmas/Summer vacation period. It was made possible by the combined team effort of Yachting Developments staff and management. It is a great boat, and I know the owner and crew will enjoy it as much as we enjoyed building it”
Sailing yacht Antares III sailing
Yacht Antares III was handed over to her owner 2 weeks after launching; the vessel is currently on her maiden voyage cruising throughout the South Pacific.
Current projects underway at Yachting Developments include a major refit of the iconic Endeavour, a 40m J Class, and new custom build YD66 (also known as sailing catamaran Q5) a 30m Warwick designed sailing Catamaran.
Yachting Developments are regular exhibitors at both the Monaco Yacht Show and the Fort Lauderdale International Boat Show and are looking forward to taking part in the 2011 shows.
Below is a selection of images showing charter yachts built by Yachting Developments
There are more details about Yachting Developments here.
Specifications of the 30m Sailing yacht Antares III by Yachting Developments
Yachting Developments Build Number…….. : YD69
Builder………………………………………….. : Yachting Developments Auckland, New Zealand
Type……………………………………………… : Fixed Keel Sloop
Design & Styling……………………………. : Dixon Yacht Design
Naval Architect………………………………. : Dixon Yacht Design
Interior Architect……………………………. : Rhoades Young Ltd
Owner’s Project Manager………………… : Mr. Patrick Yeoward
Main characteristics:
Length Hull Overall………………………… : 30.00 meter / 98.4 ft
Length Waterline……………………………. : 26.71 meter / 87.6 ft
Beam (max)……………………………………. : 7.35 meter / 24.1 ft
Draft…………………………………………….. : 3.85 meter / 12.6 ft
Displacement (light ship) approx………. : 99.6 tonnes / 219,580 lbs
Ballast…………………………………………… : 28.5 tonnes / 62,832 lbs (including steel fin fabrication)
Hull Construction…………………………… : Composite, E-glass, Kevlar, Carbon fibre, epoxy
Superstructure………………………………… : Composite, E-glass, Carbon fibre, epoxy
Exterior Paint System……………………… : International / Awl-Grip
Classification…………………………………. : GL / +100A5 RSA (50) Sailing Yacht : MCA LY2
Cruising Speed……………………………….. : 11 knots
Range……………………………………………. : 3,600 nautical miles @ 11 knots
Propulsion:
Main Engines…………………………………. : 1 x Scania D1-12 59M
Power……………………………………………. : 331 KW (450hp) @ 1800 rpm
Gearbox………………………………………… : ZF-360 2.7:1
Shaft & Propeller……………………………. : Armatec 780mm 4 blade
Steering Gear…………………………………. : 2 speed Direct Quadrant (non assisted)
Keel & Rudder:
Keel………………………………………………. : Fixed fin keel with bulb
Rudder………………………………………….. : Fixed free hanging rudder, carbon fibre construction
Mast & Rigging:
Type……………………………………………… : Keel stepped carbon fibre, Southern Spars NZ
Air Draft……………………………………….. : Approx. 40m
Standing Rigging……………………………. : Carbon fibre, Southern Spars NZ
Boom……………………………………………. : In-boom furling, carbon fibre, Southern Spars NZ
Headsail Furlers……………………………… : Reckman / Carbon Fibre Foils
Detachable Inner Forestay……………….. : Carbon fibre, Southern Spars NZ
Sails:
Sail Area Upwind…………………………… : 453 m² / 4,876 sqft
Sail Area Reaching…………………………. : 554 m² / 5,963 sqft
Sail Area Downwind………………………. : 800 m² / 8,611 sqft
Sail Maker……………………………………… : North Sails NZ
Deck Gear:
Deck Winches………………………………… : Harken
Captive Winches…………………………….. : Onboard Systems NZ
Hatches…………………………………………. : Yachting Developments Custom
Deck Gear……………………………………… : Yachting Developments Custom / Harken
Equipment:
Bow Thruster…………………………………. : OYS 40 hp, hydraulic
Stern Thruster………………………………… : OYS 25 hp, hydraulic
Windlasses…………………………………….. : Lewmar V8, hydraulic
Tanks:
Fuel Main Tank Capacity…………………. : 8,250 litres / 2,176 US Gal
Fuel Day Tank Capacity………………….. : 1,000 litres / 264 US Gal
Freshwater Capacity……………………….. : 2,700 litres / 712 US Gal
Black/Grey Water Capacity……………… : 2 x 600 litres / 2 x 158 US Gal
Watermaker……………………………………. : HEM, 1 x 4.000 LAD
Black Water Treatment……………………. : Ecomar 8
Electrical system:
Electrical System……………………………. : 230/400 VAC – 50Hz 3-phase, seamless transfer
Generators……………………………………… : Kohler 2 x 28KW
Battery Banks………………………………… : Lithium Ion Master Volt
Control & Monitoring Systems…………. : C-Zone
Air-conditioning & Heating……………… : Marine Air 132,000 BTU
Communication Systems…………………. : Sailor
Navigation Equipment…………………….. : Simrad/NSO
Galley Equipment…………………………… : Miele
Entertainment Systems……………………. : Bose
Interior:
Interior Manufacturer……………………… : Yachting Developments
Interior Architect……………………………. : Rhoades Young Design
Interior Architect Crew Area……………. : Dixon Yacht Design
Number of Owner / Guest cabins……… : 3 (1 Master cabin, 2 Guest cabins)
Number of Crew Cabins………………….. : 2
