Heesen Yachts fully customised motor yacht SKY is a 50 metre full displacement luxury vessel launched by the Dutch shipyard in Oss in March 2010. Constructed under the hull number 14750 yacht SKY features naval architecture by Heesen’s in-house naval architects with an exterior styling by Frank Laupman of Omega Architects.

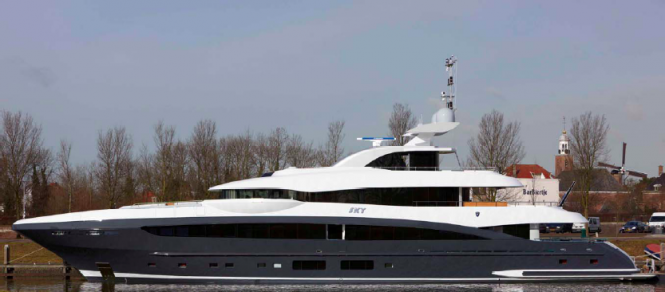

50 m Heesen Motor Yacht SKY
Motor Yacht SKY‘s contemporary and masculine interior, decorated predominantly with Makassar cabinetry and featuring carbon-fibre and stainless steel detailing, was designed by the New York-based interior designers Mojo-Stumer Associates.

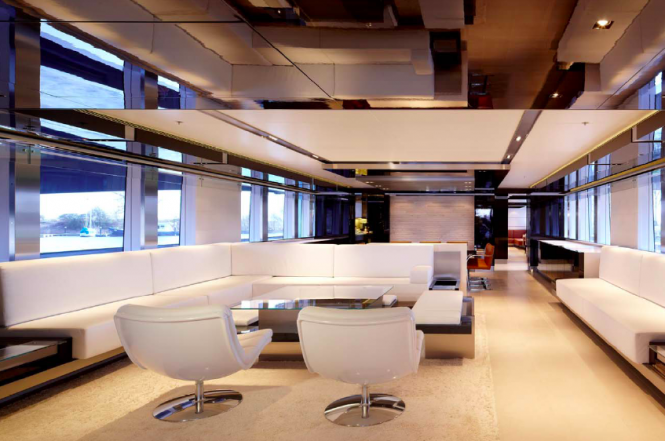

Heesen Yacht SKY - Main Saloon Lounge Area
Mark Stumer explained that the interior was created to reinforces the linear spatial quality of the yacht without sacrificing the internal headroom. The TVs, kitchen equipment, storage units have all been ‘hidden’ in order maintain the immaculate symmetry.

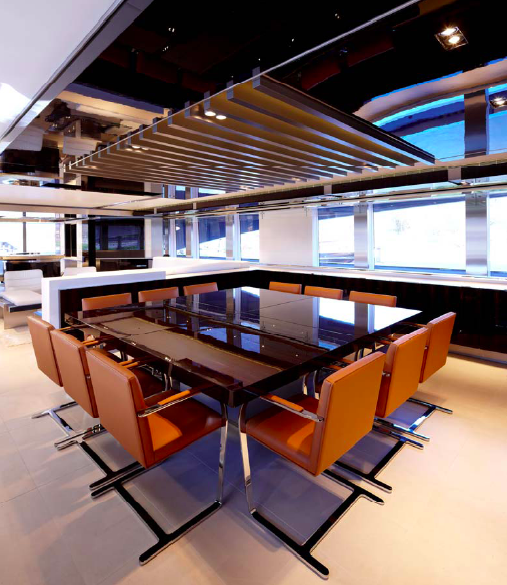

Heesen Yachts motoryacht SKY - Main Saloon Dining Area
Accommodation on board of this stunning yacht SKY is offered in four guests cabins and one Owner’s suite. The Owner’s suite is located forward on the main deck and features a en-suite bathroom with a custom made steam shower.

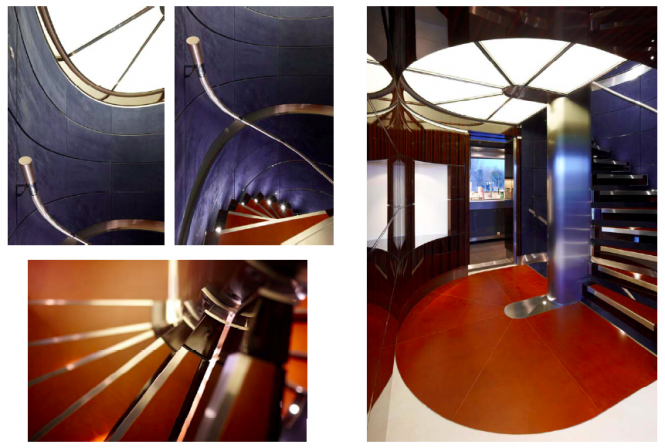

Superyacht SKY - Interior by Mojo-Stumer Associates - ATRIUM
The two twin-bedded guest cabins are located amidships on the lower deck, aft of the two VIP double cabins. All cabins are equipped with private en-suite shower rooms.

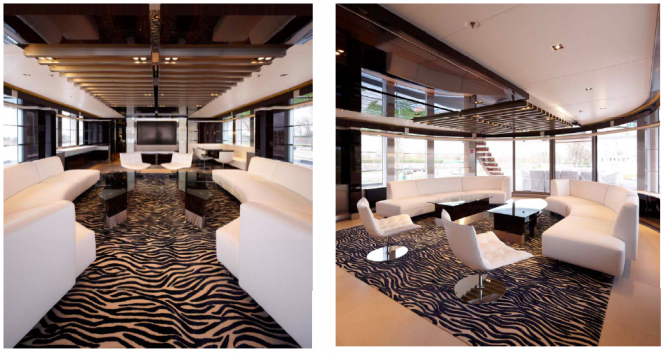

Yacht SKY by Heesen Yachts - interior by Mojo Stumer Associates - Upper Salon
SKY’s guests can enjoy a fully equipped fitness area found on the sundeck, where the custom made octagonal spa pool occupies the forward element of this partially sheltered deck area.

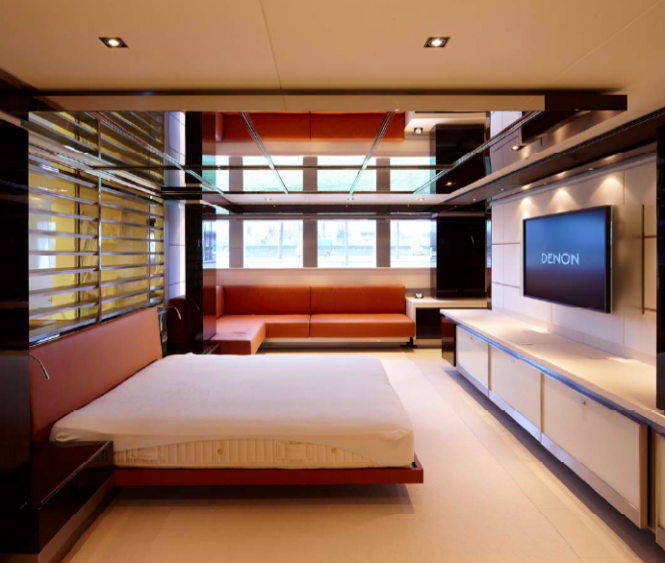

Superyacht SKY - Owner's Suite
YN 14750 MAIN CHARACTERISTICS
Hull type: Twin screw, round bilge, displacement motor-yacht
Naval Architect: Heesen Yachts
Exterior Designer: Omega Architects
Interior Designer: Mojo-Stumer Associates
Classification: Lloyd’s, 100A1, SSC YACHT, LMC. Large Commercial Yacht Code LY2 / MCA 100A1,
Hull Material: Steel
Superstructure Material: Aluminium

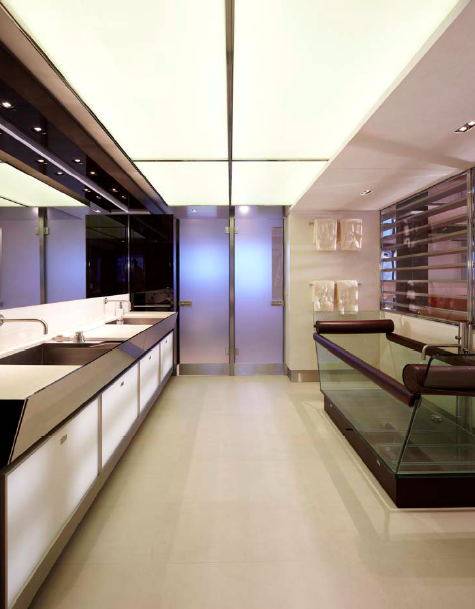

50m Heesen Yacht SKY - Owner's Bathroom
DIMENSIONS
Length over all: 50.50 metres (165ft 8in)
Beam over all: 9.60 metres (31ft 6in)
Draft: 3.10 metres (10ft 2in)
Displacement (50% load): 485 tonnes (1,069,200 lbs)
Tonnage: 655 GT (approx.)

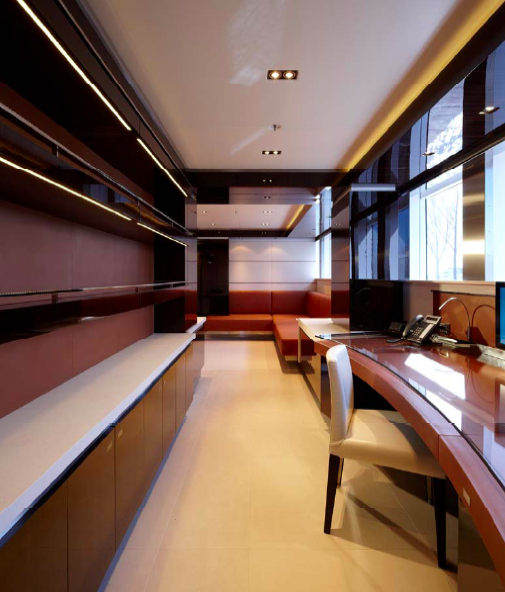

Heesen SKY superyacht with interior by Mojo-Stumer Associates - Owners Office
TECHNICAL DETAILS
Maximum speed (50% load): 14.5 Knots
Range at 13 knots: 3,200nm
Range at 10 knots: 6,000nm
Fuel capacity: 80.0 m3 (21,130 US Gallons)
Fresh water: 20.0 m3 (5,280 US Gallons)

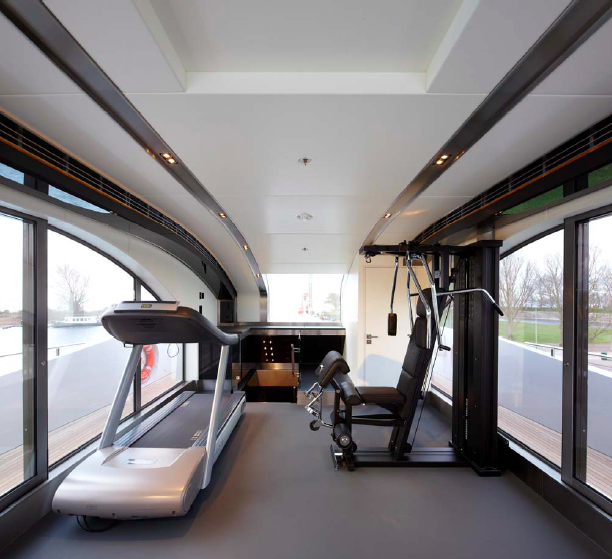

Superyacht SKY by Heesen Yachts - GYM
PROPULSION SYSTEM
Main engines: 2 °— MTU 8V 4000 M70 diesels
Maximum power: 2 °— 1,160kW
Gearboxes: 2 °— ZF 4661
Engine control: MTU Blue vision, three control stands
Shafts: Water lubricated, stainless steel 431, Ø127 mm
Propellers: Schaffran, five-blade, fixed pitch, Ø1,600 mm
Generators: 2 °— Kilo-Pak, each 150kW at 50Hz
1 °— Kilo-Pak, emergency, 50kW at 50Hz
Bow-thruster: Electrically driven HRP, 110 kW
Steering system: Sperry Marine Systems, type 2.S.25.35.2
Rudders: Two stainless steel rudders with stainless steel 431 shafts
At anchor Stabilization: VT Naiad, type 820 with 2 fins of 4.17m2
