Mondo Marine has teamed with Luca Dini Design to create a 52m ‘fast’ superyacht concept. The Naval Architecture of the 52m Fast yacht is by MondoMarine and the exterior and interior styling by Luca Dini Design.

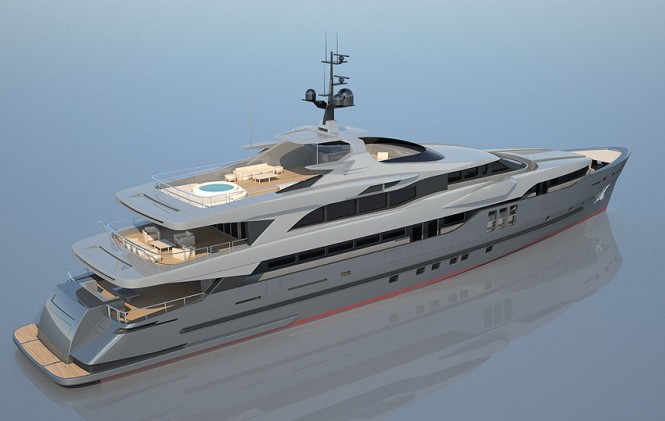

Mondo Marine 52 meter 'Fast' yacht by Luca Dini Design
MondoMarine’s, a 52-meter ‘Fast’ motor yacht will measure in at 52.00 m (170.60 ft) with a maximum beam of about 9.50 m (31.15 ft). Mondo Marine 52 meter ‘Fast’ yacht by Luca Dini Design will feature an owner’s suite and 4 guest cabins able to accommodate 10-12 guests. The yacht will also feature 5 crew cabins and a Captain’s cabin.
The Mondo Marine 52 meter ‘Fast’ yacht is estimated to have a maximum speed of 24 knots, powered by twin MTU 16V 4000 M90s and a range of 4,000 nautical miles at 12 knots.
Mondo Marine 52 meter 'Fast' yacht by Luca Dini Design
The 52 meter ‘Fast’ yacht will feature a shallow draft of 2.40-meters, enabling her to access most of the world’s superyacht marinas. She will have the capacity to carry 80,000 LT of fuel and 10,000 LT of fresh water. Her full displacement is should be around 380 tonnes.
The 52m Fast Mondo Marine superyacht will be classifies to Lloyds Register classification 100 A1 SSC Yacht Mono G6, LMC
The MondoMarine 52-meter ‘Fast’ is just one of several projects the Italian superyacht builder has in the works.
Following the launch of superyacht Manifiq that was launched in May and delivered in June 2010, MondoMarine have a further six motor yachts already under construction at the Savona Shipyard: These new motor yacht include two light alloy Semi displacement 41 Metre motor yachts with the first one featuring external lines by Cor D. Rover and interior design by Luca Dini , and the second by Giorgio Vafiadis for external lines and interior design, with a delivery set for 2011. Two light alloy Semi displacement 50 Metre motor yachts are also under construction with external lines byGiorgio Vafiadis and interior design by Luca Dini, set for delivery in 2011, a light alloy Semi displacement 51 Metres with external lines by Giorgio Vafiadis, to be delivered in 2012 and a steel and light alloy Displacement 54 Metres due to be delivered in 2012.
As well as the yachts Mondo Marine already have in construction, they have a light alloy Semi displacement 43 Metres with external lines by Luca Dini, a light alloy 52 Metres Fast with external lines by Luca Dini and a steel and light alloy Displacement 64 Metres with external lines by Giorgio Vafiadis are at an advanced design stage.

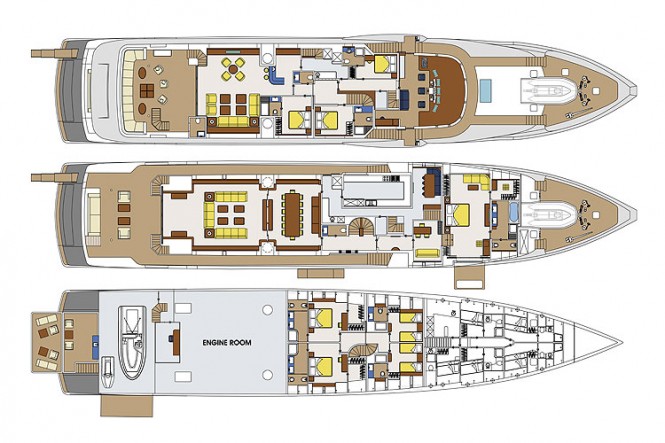

Mondo Marine 52 meter 'Fast' yacht by Luca Dini Design - Layout
Mondomarine 52 Metres Fast
TECHNICAL CHARACTERISTICS
Length overall about 52.00 m – 170.60 ft
Length waterline about 47.20 m – 154.85 ft
Maximum beam about 9.50 m – 31.15 ft
Draft about 2.40 m – 7.85 ft
Interior height about 2.15 m – 7.05 ft
Fully loaded displacement about 380 ton
Fuel tanks 80,000 l
Water tanks 10,000 l
Engines MTU 12V4000M90 2×2,735 hp at 2,100 rpm
2×2,040 kW at 2,100 rpm
2×2,2775 CV at 2,100 rpm
Maximum speed about 22 knots
Cruising speed about 20 knots
Range at 12 knots about 4,000 nm
ALTERNATIVE ENGINES
Engines MTU 16V4000M90 2×3,650 hp at 2,100 rpm
2×2,720 kW at 2,100 rpm
2×3,700 CV at 2,100 rpm
Maximum speed about 24 knots
Cruising speed about 22 knots
Range at 12 knots about 4,000 nm
Owner’s stateroom 1 double
Guest’s staterooms 4 doubles
Captain’s cabin 1 double
Crew’s cabins 5 doubles
Construction material Light alloy
Naval architecture Mondomarine
Concept design and exterior styling Luca Dini Design
Interior design Luca Dini Design
Lloyds Register classification 100 A1 SSC Yacht Mono G6 LMC
