Rossinavi 74 is a 74m new build superyacht project to be built by the Italian yacht builder Rossi Navi. The new 74m Rosi Navi mega yacht features Naval Architecture by Giovanni Arrabito with exterior and interior styling and design by Team 4 Design. The 74m Rosi Navi yacht boasts a helipad and could be available 36 months from signature of contract.
Rossi Navi 74m Superyacht Project by Giovanni Arrabito
The yacht will be able to accommodate up to 18 guests overnight in 9 luxurious staterooms including seven double cabins, a VIP suite and a master stateroom located on a private owner’s deck. A crew of 20 will be accommodated in separate crew quarters.
The Rossi Navi 74-meter will be built to RINA class and MCA compliant. At 74meters in length with a 13.60-meter beam, she will boast a spacious interior volume. The draught at full load is expected to be in the region of 3.30-meters. The layout can be altered within the parameters of the engineering platform and the interior is open to the choice of the buyer.

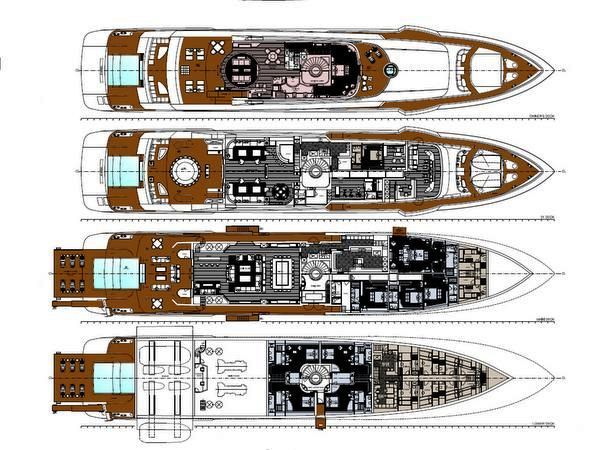

Rossi Navi 74m Superyacht Project Layout
The 74m Megayacht will have a steel hull and aluminum superstructure and be powered by twin CAT 3512B-DITA marine diesels with an expected top speed of 16.5 knots. She is expected to run a 5,000 nautical mile continuous range at the speed of 12 knots, thanks to her 220,000 LT capacity fuel tanks.
Motor Yacht Rossinavi 74m Specification
Details
Builder Rossi Navi
Year 2013
Naval Architect Giovanni Arrabito
Exterior Designer Team 4 Design
Interior Designer Team 4 Design
Dimensions
Length Over All 74.00m (242’9″)
Beam 13.60m (44’7″)
Draft max. 3.30m (10’10”)
Gross Tonnage
Accommodations
Guests 18
Crew 20
Cabins
1 Master / 1 VIP / 7 Double
Construction
Hull Steel
Superstructure Aluminium
Deck Teak
Hull Type Full Displacement
Deck NB 5
Engine
Type Diesel
Builder Caterpillar
Model 2x 3512B-DITA
Power 2525kw / 3386hp
Total Power 5050kw / 6772hp
Engine Propulsion Twin Screws
Performance & Capabilities
Max. Speed 16.5
Cruise Speed 15.0
Range 5,000nm @ 12kts
Fuel 220000L / 58,118USG
Water 45000L / 11,888USG
Equipment
Generator, Water Maker, Naiad Stabilizer, 2 x Thruster, Air Cond., Helipad,
